Installing Accelerator Pedal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

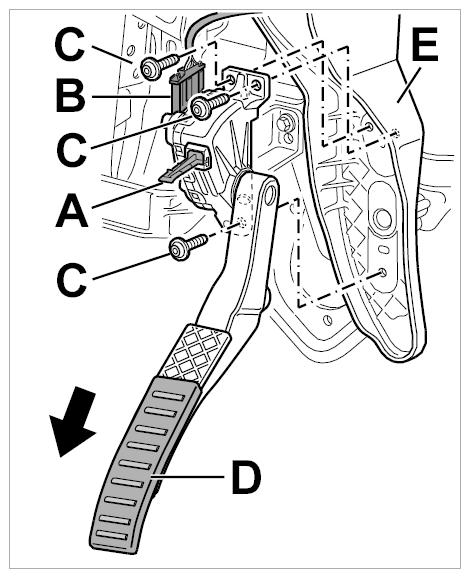

Fig 1: Installing Accelerator Pedal
G09933379Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Slide pedal cap -D-  onto the new accelerator pedal module.
  2. Fit new accelerator pedal module on the bracket -E-  using the three fastening screws -C-  . → Tightening torque: 10 Nm (7.5 ft. lb.) +/-1 Nm (+/-0.5 ft. lb.)
  3. Connect plug connection -B-  .
