Removing Sucking Jet Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

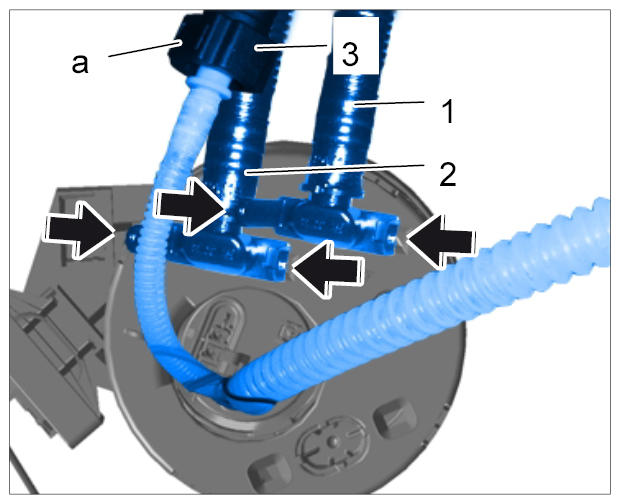

Disconnect the sucking jet pump at the fuel pump. To do this, press on the left and right -arrows- and pull off the connections -1 and 2- .

Fig 1: Locating Jet Pump Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release connection -3- and unclip it -a- .

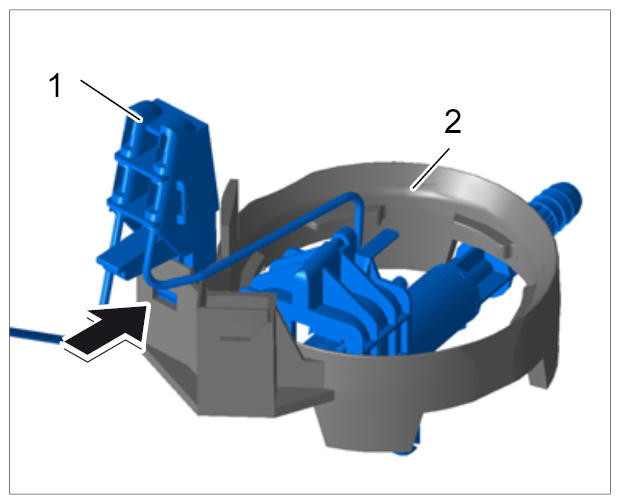

Release the sucking jet pump -1- from the bracket -2- on the fuel tank floor at the right -arrow- and unclip it.

Fig 2: Releasing Jet Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

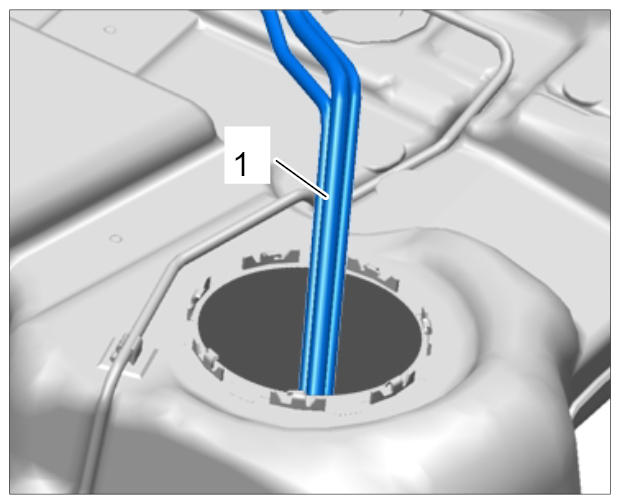

Remove the sucking jet pump through the opening in the left connection unit.

Fig 3: Removing Jet Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
