Installing Sucking Jet Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the sucking jet pump into the fuel tank through the opening in the left connection unit.
  2. Position the sucking jet pump -1-  in the fuel tank and clip it into the holder -2-  .

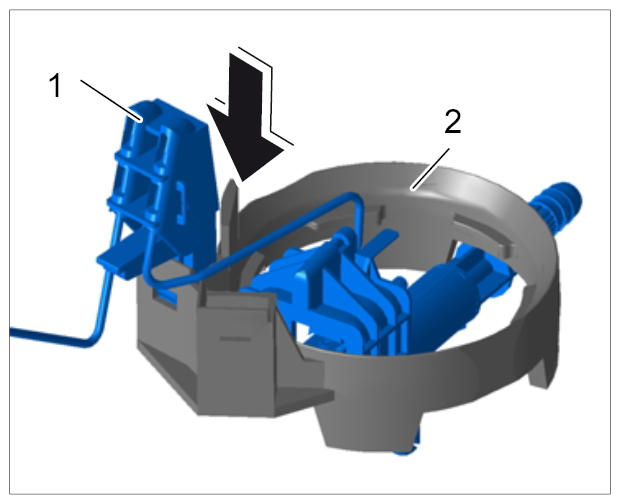

    Fig 1: Installing Jet Pump
    G09933331Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Connect the sucking jet pump connections -1 and 2-  at the fuel pump. These must lock with an audible click.

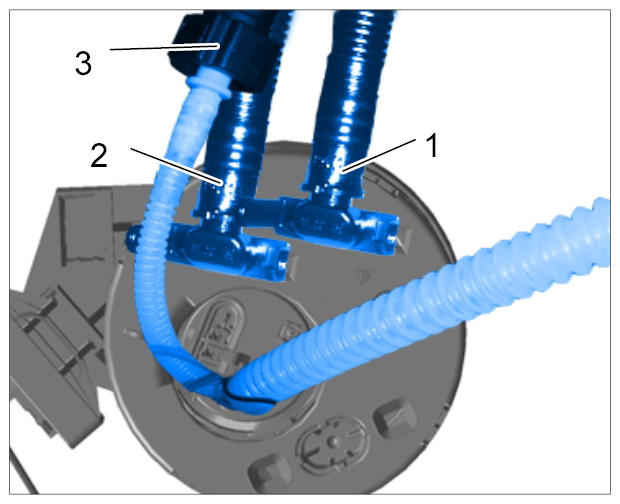

    Fig 2: Connecting Sucking Jet Pump Connections
    G09933332Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Connect the connection -3-  until it engages securely.
