Removing Leakage Diagnosis Pump (LDP)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

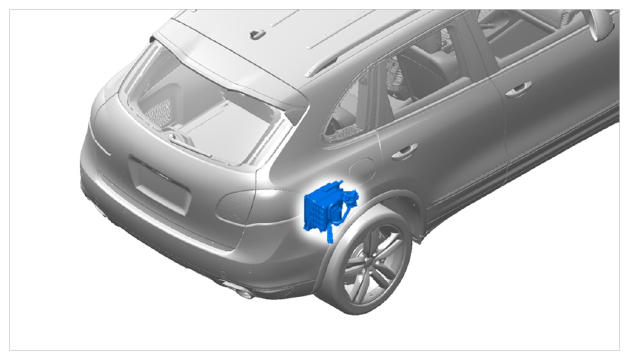

Fig 1: Identifying Leakage Diagnosis Pump Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pull air hose -4- off the leakage diagnosis pump -1- (-B- ).

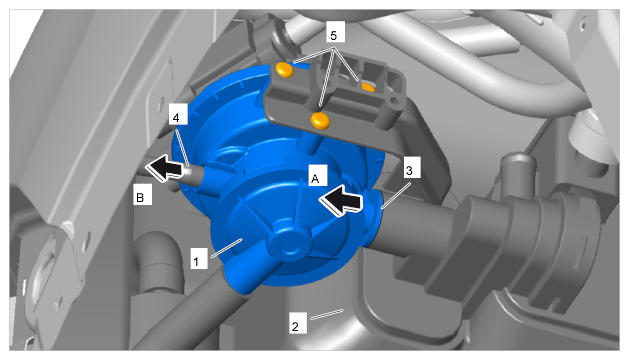

Fig 2: Removing Leakage Diagnosis Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Leakage diagnosis pump
2. Carbon canister
3. Rubber flange
4. Air hose
5. Fastening screws
Unscrew three fastening screws -5- .
Pull leakage diagnosis pump -1- off the carbon canister -2- (-A- ).
