Installing Leakage Diagnosis Pump (LDP)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check rubber flange -3-  for damage and replace it if necessary.

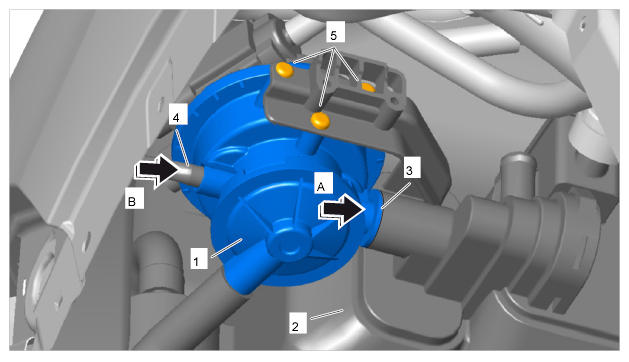

    Fig 1: Installing Leakage Diagnosis Pump
    G09933323Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Leakage diagnosis pump
    2. Carbon canister
    3. Rubber flange
    4. Air hose
    5. Fastening screws
  2. Fit rubber flange -3-  on the connection piece on the leakage diagnosis pump and fit leakage diagnosis pump -1-  on the carbon canister -2-  (-B-  ).
  3. Screw in three fastening screws.
  4. Fit air hose -4-  on the leakage diagnosis pump -1-  (-B-  ).
