Removing Leakage Diagnosis Module

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove leakage diagnosis module -1-  .
    1. 1.1. Disconnect lines -4-  on the leakage diagnosis module -1-  .
    2. 1.2. Disconnect electric plug connection -5-  .
    3. 1.3. Unclip electric line -3-  at the holder.
    4. 1.4. Unscrew nuts -2-  .

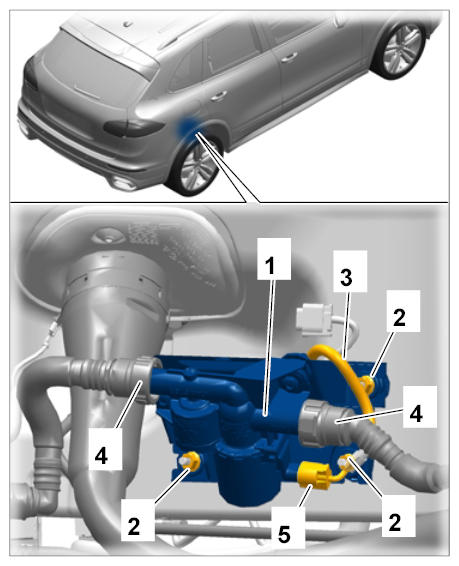

      Fig 1: Identifying Leakage Diagnosis Module And Electric Line
      G09933320Courtesy of PORSCHE CARS NORTH AMERICA, INC.
