Removing Carbon Canister - USA

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

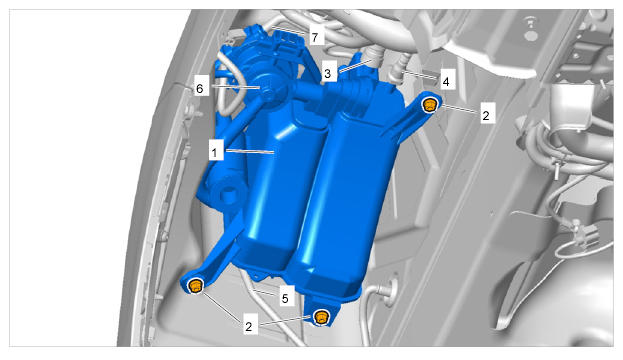

Fig 1: Overview Of Carbon Canister With Leakage Diagnosis Pump
G09933309Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Carbon canister
  2. Fastening screws
  3. Thick blue hose
  4. Thin black hose
  5. Electric line
  6. Leakage diagnosis pump
  7. Vacuum line for leakage diagnosis pump
  1. Unscrew three fastening screws -2-  on the carbon canister -1-  .
  2. Release hose connections -3 + 4-  by pressing them together and pull them off.
  3. Unclip electric line -5-  at the back of the carbon canister from the brackets.
  4. Pull off vacuum line -7-  on leakage diagnosis pump -6-  .
  5. Release and pull off electric plug connection on leakage diagnosis pump -6-  .
