Installing Carbon Canister - RoW (Rest Of The World)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

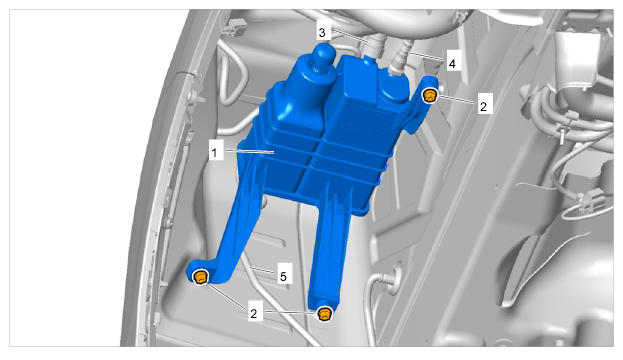

Fig 1: Overview Of Carbon Canister
G09933310Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Carbon canister
  2. Fastening screws
  3. Thick blue hose
  4. Thin black hose
  5. Electric line
  1. Clip electric line -5-  at the back of the carbon canister into the brackets.
  2. Attach hose connections -3 + 4-  to the carbon canister -1-  .
  3. Tighten three fastening screws -2-  on the carbon canister -1-  to → Tightening torque: 9 Nm (6.5 ft. lb.)  .
