Removing Tank Vent Valve

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

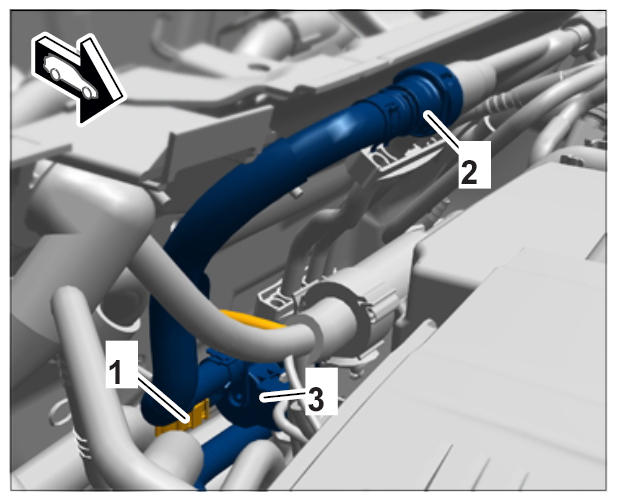

Loosen tank vent valve with hoses and set it aside.
1. 1.1. Pull off cable plug -1- .
2. 1.2. Disconnect fuel tank breather hose -2- in the plenum panel area.
3. 1.3. Remove tank vent valve -3- from the holder.

  Fig 1: Removing Tank Vent Valve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

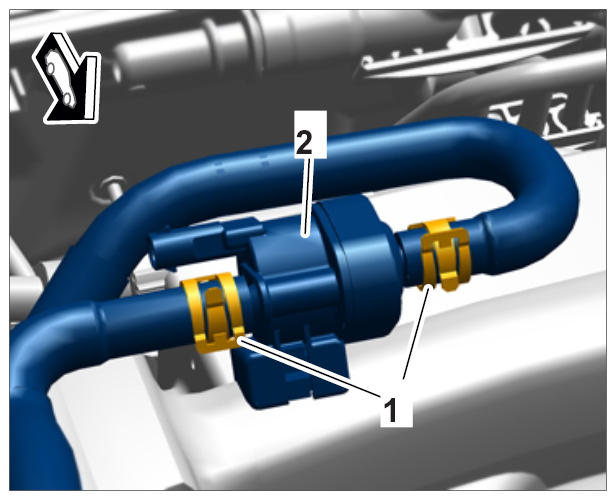

Loosen clamps -1- and pull hoses off the tank vent valve -2- .

Fig 2: Removing Tank Vent Valve Hoses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
