Right Fuel Level Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

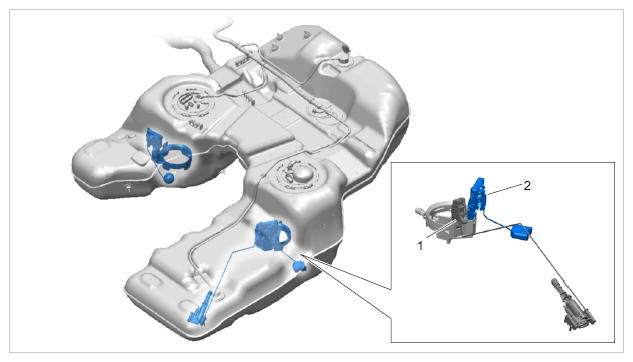

Fig 1: Identifying Fixing Device For Right Fuel Level Sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right fuel level sensor clipped into floor holder

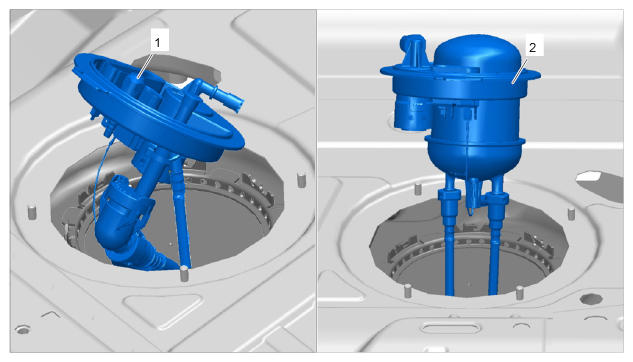

Fig 2: Identifying Left And Right Connection Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right connection unit with pressure regulator
Left connection unit with fuel filter

Disconnect all connections apart from the fuel line -3- on the underside of the right connection unit.
The fuel line -3- cannot be disconnected from the pressure regulator (right connection unit).

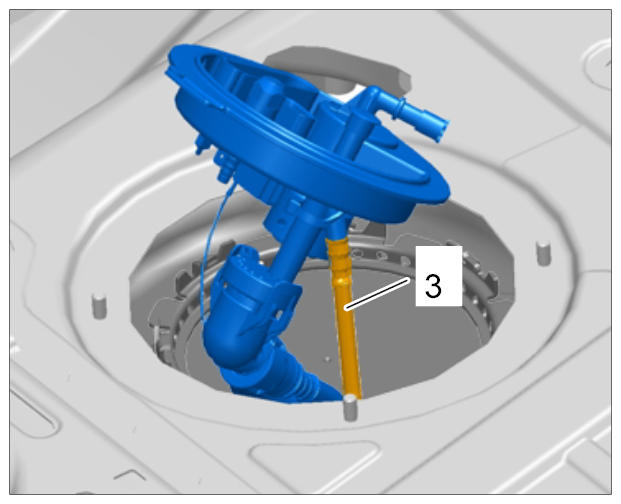

Fig 3: Identifying Fuel Line On Pressure Regulator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect the fuel line -3- from the left connection unit.

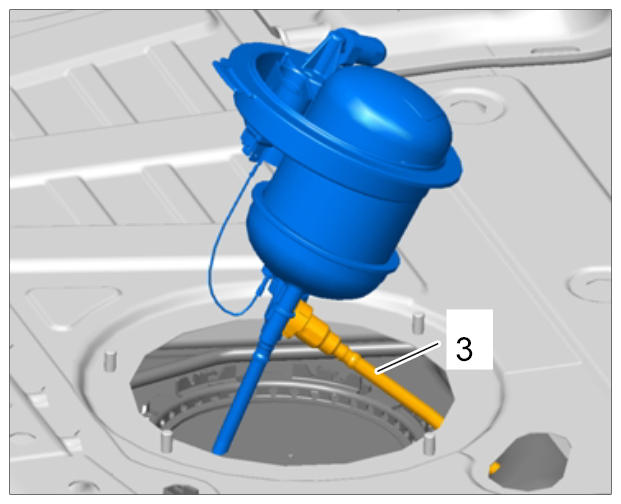

Fig 4: Identifying Fuel Line On Left Connection Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Attach a piece of wire or similar item to the fuel line in order to pull the line back through the fuel tank during installation.
Remove the right connection unit (with pressure regulator) completely.
To make it easier to remove the sensor, remove the fuel pump by pulling it upwards. → Removing Fuel Pump - section on "Removing"
Press the retaining spring on the sensor by hand while at the same time pulling the sensor up. → Fig 6 Removing fuel level sensor

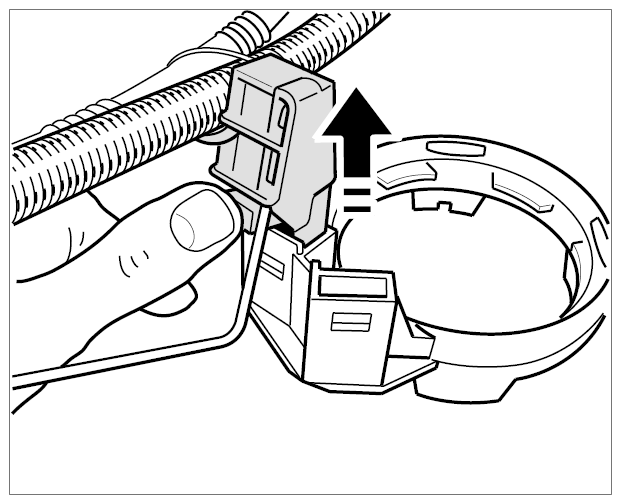

Fig 5: Removing Fuel Level Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

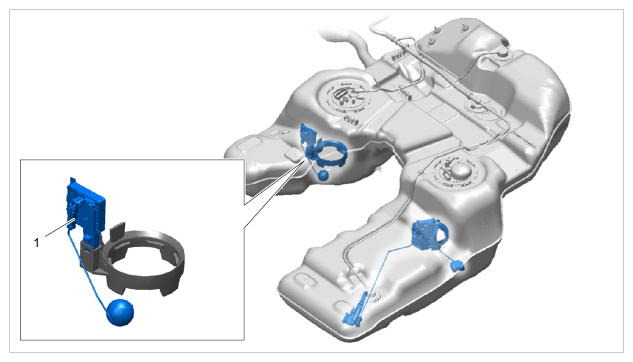

Fig 6: Identifying Left Fuel Level Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Left sucking jet pump and holder clipped into floor holder
2. Left fuel level sensor clipped into floor holder
Fig 7: Identifying Left And Right Connection Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Right connection unit with pressure regulator
2. Left connection unit with fuel filter
Unplug electric plug connection -1- for the fuel filter.

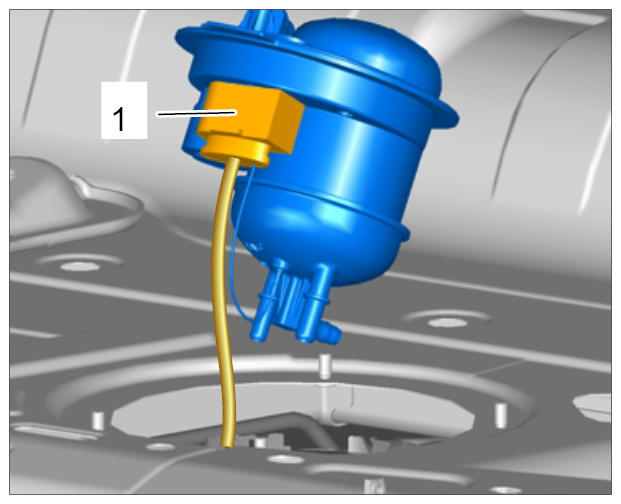

Fig 8: Identifying Plug Connection For Fuel Filter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull both lines -2 and 3 - off the fuel filter.

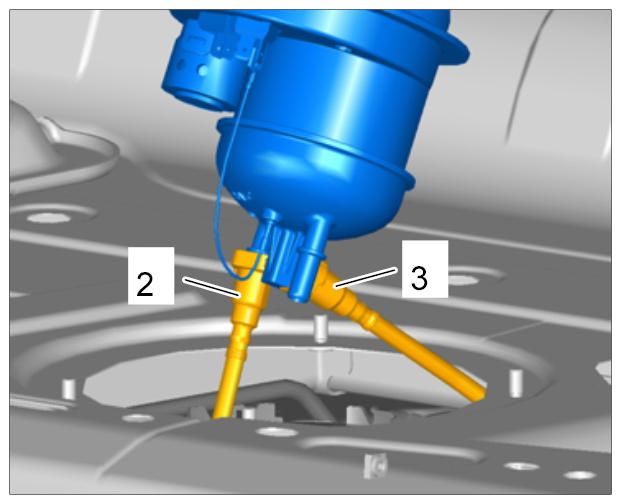

Fig 9: Identifying Fuel Filter Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the retaining spring on the sensor by hand while at the same time pulling the sensor up -arrow- .

Fig 10: Removing Fuel Level Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
