WM 201519 Removing And Installing Fuel Level Sensor (All Models): Information
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The two senders have different shapes and may not be switched .
- The float installed in the left direction of travel is flat, while the float installed in the right direction of travel is spherical .
- The removal of both senders is explained in parallel in this description. If only one sender has to be removed, the other side of the tank can remain untouched .

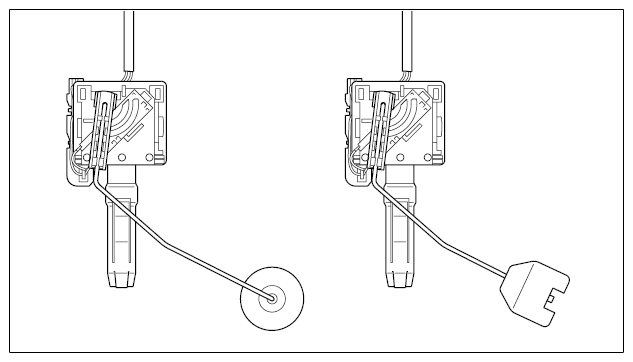

left - Fuel level sender 1 installed in vehicle tank on the right.
right - Fuel level sender 2 installed in vehicle tank on the left.
