Installing Fuel Tank

→ Ventilate the work area well.

→ Never ingest or inhale.

→ Read specific information on the Hazard Sheet.

→ Do not smoke, eat or drink in the work area.

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

Information

• Note direction arrow stamped on the restraining straps and install these in the direction of travel  .

1. Lift the fuel tank using the Master Gear unit elevating platform WE 1206  and carefully guide it into position. Also guide in the degassing tank in the right wheel housing.
2. Right opening

   Information

   The fuel line must be connected before guiding the fuel tank fully into installation position.

   1. 2.1. Connect the fuel line -4-  and lock it in the holder.
      Fig 1: Identifying Fuel Line

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Install plastic covers and side restraining straps. → Tightening torque: 33 Nm (24 ft. lb.)

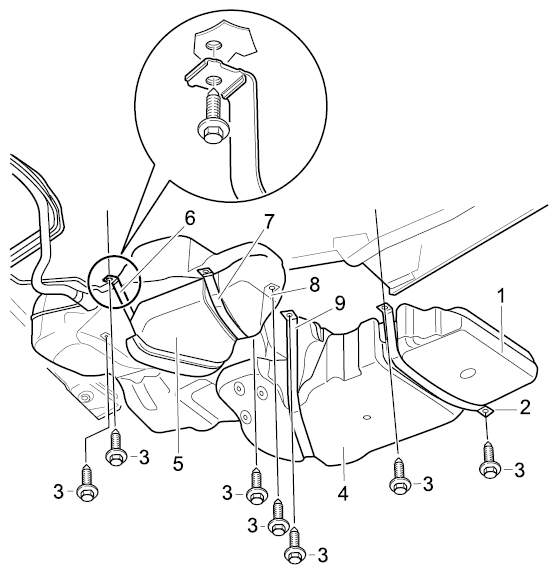

   Fig 2: Identifying Fuel Tank Mounting Components

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   No.	Designation	Qty.	Removal	Installation
   	Fuel Tank	1	Do not damage fuel tank and connected lines. Lines cannot be replaced individually.	Do not damage fuel tank and connected lines. Lines cannot be replaced individually.
   -2-	Restraining strap, front left	1	Before releasing the restraining straps, make sure that the tank cannot fall down.	The direction of travel arrow must be pointing forward.
   -3-	Fastening screw, M8 x 25	10
   -4-	Plastic covers, left	2
   -5-	Plastic cover, right	1
   -6-	Restraining strap, rear right	1	Before releasing the restraining straps, make sure that the tank cannot fall down.	The direction of travel arrow must be pointing forward.
   -7-	Restraining strap, front right	1	Before releasing the restraining straps, make sure that the tank cannot fall down.	The direction of travel arrow must be pointing forward.
   -8-	Restraining strap, center	1		The direction of travel arrow must be pointing forward.
   -9-	Restraining strap, rear left	1	Before releasing the restraining straps, make sure that the tank cannot fall down.	The direction of travel arrow must be pointing forward.

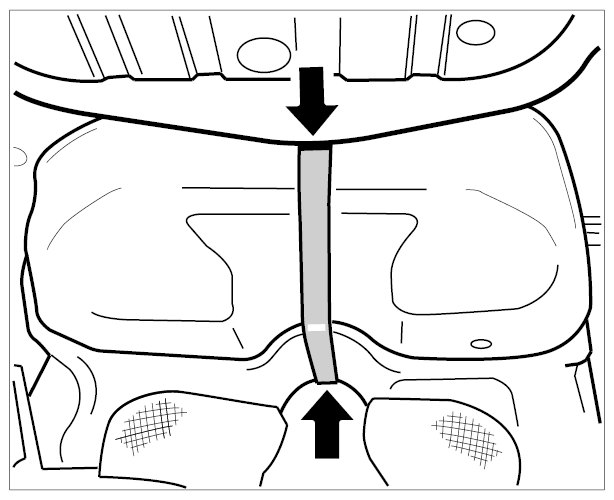

4. Fit the tank attachment band, which runs in direction of travel -arrows-  . → Tightening torque: 33 Nm (24 ft. lb.)
   Fig 3: Locating Tank Attachment Band

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

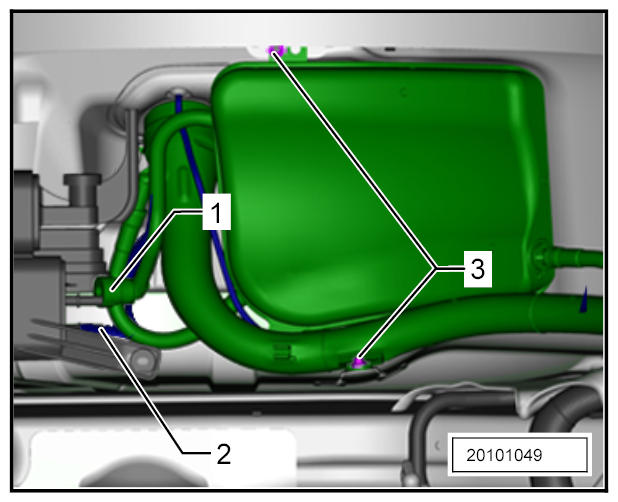

5. Connect and lock two lines -1 and 2-  on the active carbon filter.
   Fig 4: Identifying Lines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

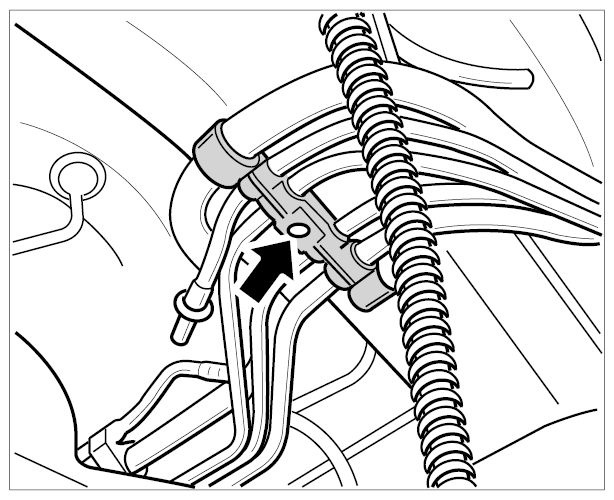

6. Replace the line bracket and fit it on the longitudinal member. Clip in lines. → Line bracket
   Fig 5: Identifying Line Bracket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Screw in fastening screws -3-  on the filler neck. → Tightening torque: 9 Nm (6.5 ft. lb.)

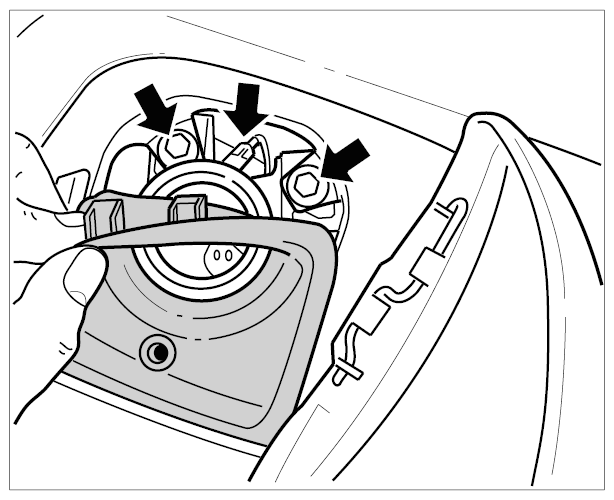

   Fig 6: Identifying Filler Neck Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

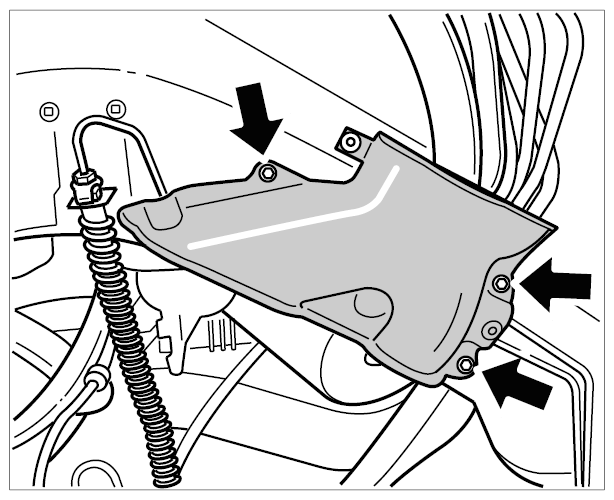

8. Install cover in the wheel housing and fit cable holder. → Tightening torque: 9 Nm (6.5 ft. lb.)
   Fig 7: Locating Stone Guard

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

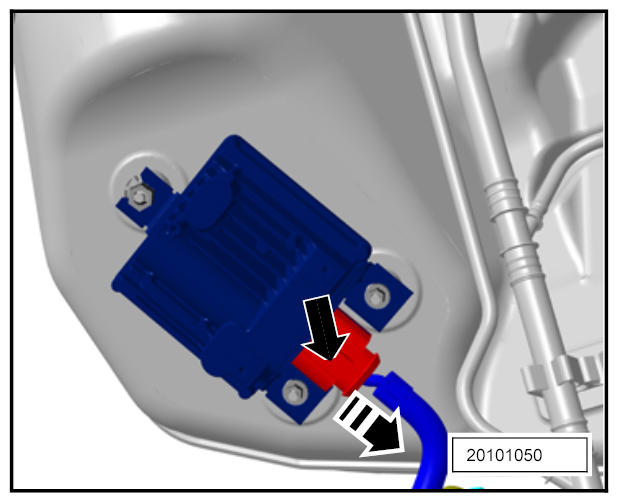

9. Connect cable plug for fuel pump control unit.
   Fig 8: Connecting Fuel Pump Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Right opening

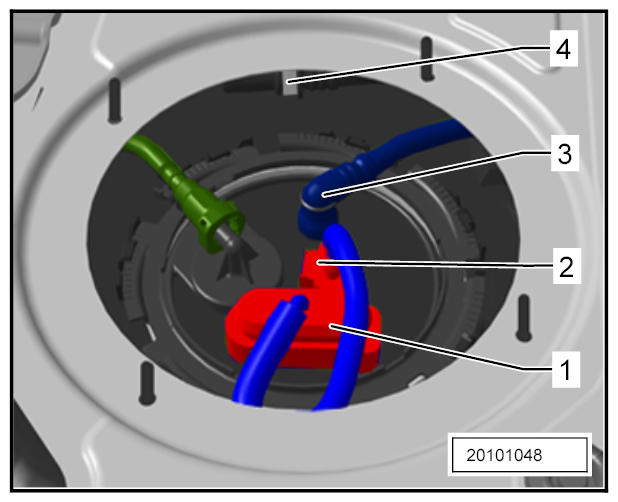

    1. 10.1. Connect two cable plugs -1 and 2-  .
    2. 10.2. Connect the fuel line -3-  to the fuel tank.

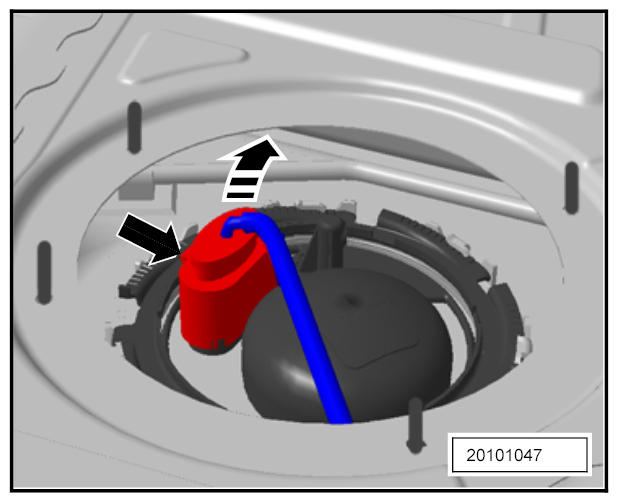

       Fig 9: Identifying Fuel Line

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Left opening
    1. 11.1. Connect cable plug.
       Fig 10: Connecting Cable Plug

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

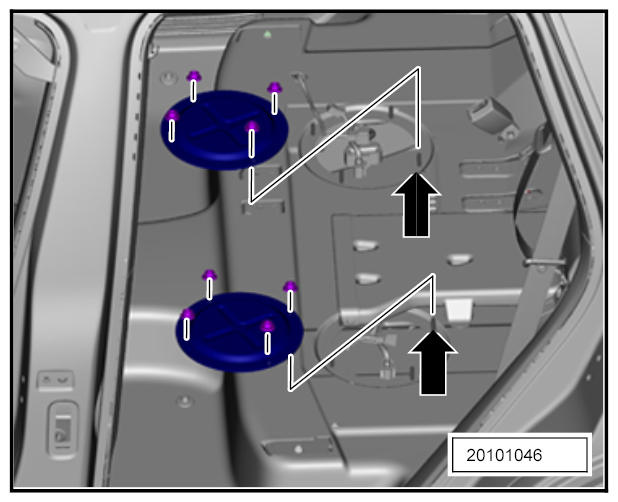

12. Fit the cover. Then tighten the four fastening nuts → Fuel tank openings in body  . → Tightening torque: 9 Nm (6.5 ft. lb.)  Refit the carpet and secure with double-sided adhesive tape.
    Fig 11: Locating Fuel Tank Covers

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
13. Screw in two fastening screws and fit rubber sleeve around the tank filler neck. → Tightening torque: 9 Nm (6.5 ft. lb.)
    Fig 12: Locating Screws And Rubber Sleeve

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
14. Install the filler flap and screw in the fastening screw on the hook.
