Using Equipment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

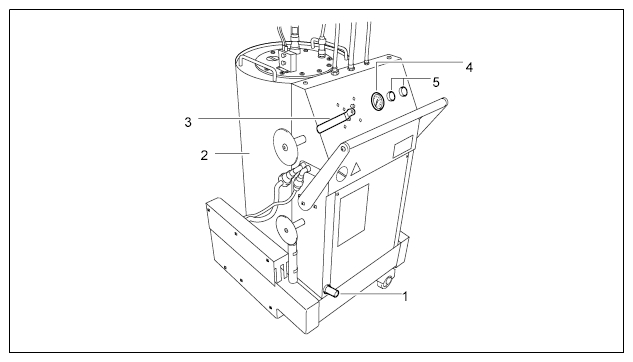

Fig 1: Overview Of Fuel Transfer System

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air connection (connection for unlubricated/oil-free compressed air)
Fuel tank (capacity: 110 liters), (Tank can be changed. The scale at the side starts at approx. 10 liters. Other markings are shown in 5-liter steps.)
Pump reversal (This allows you to change the direction of the pump from the fuel feed direction.)
Operating pressure display (Displays the set operating pressure of the pump. The value cannot be more than 6.5 bar.)
On/Off switch (For switching the pump on and off.)

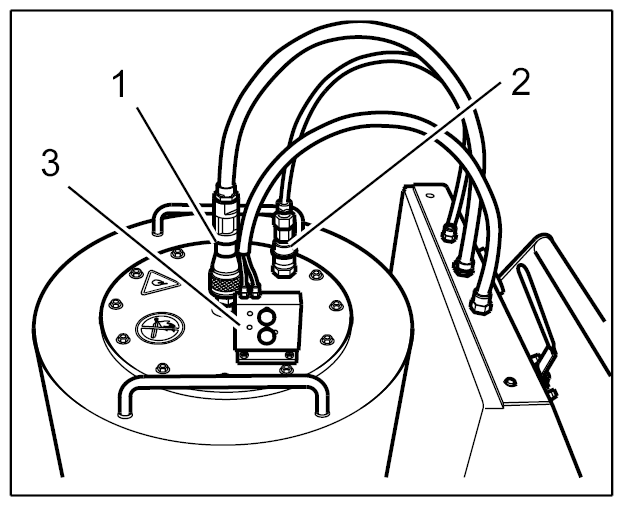

Connect the fuel hose -1- to the changeover tank. Connect the venting device (transparent hose) to the changeover tank. Then attach the pneumatic stop switch -3- to the tank and tighten the two knurled nuts.

Fig 2: Identifying Fuel Transfer System Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect the suction hose (or fuel nozzle) to the connection -1- and then connect the venting device -2- .

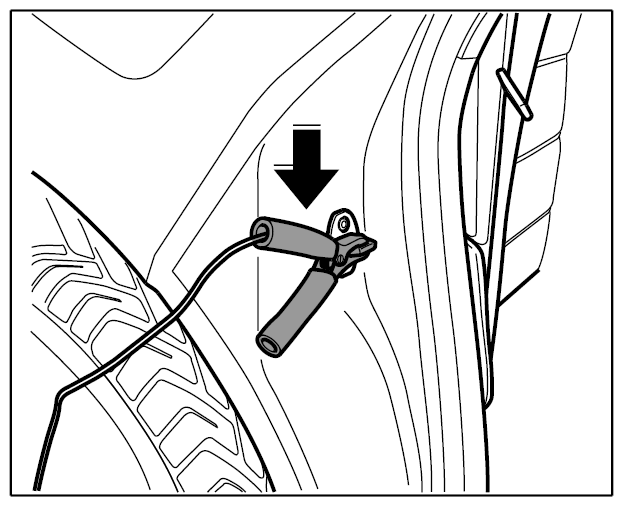

When using the pump, always make sure that the earth cable is attached to the relevant vehicle. Use an unpainted metal part (e.g. the catch bar) for this.

Fig 3: Locating Earth Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

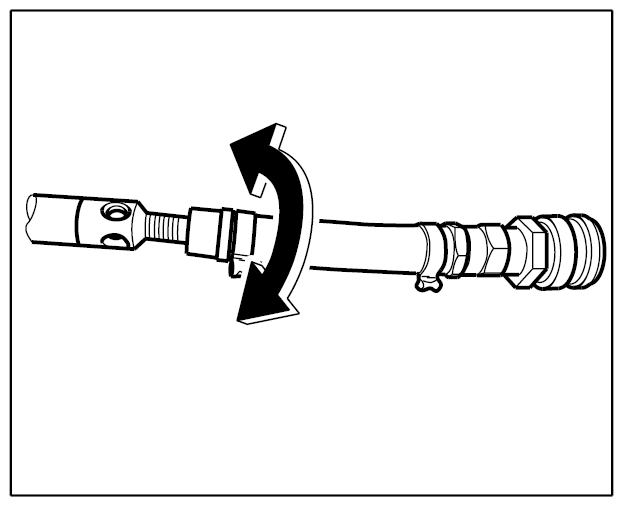

- Fuel can be removed directly through the fuel filler neck on older vehicles or vehicles from other manufacturers by removing the connecting piece .

  Fig 4: Identifying Connecting Piece
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
