Test Tool Setup

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

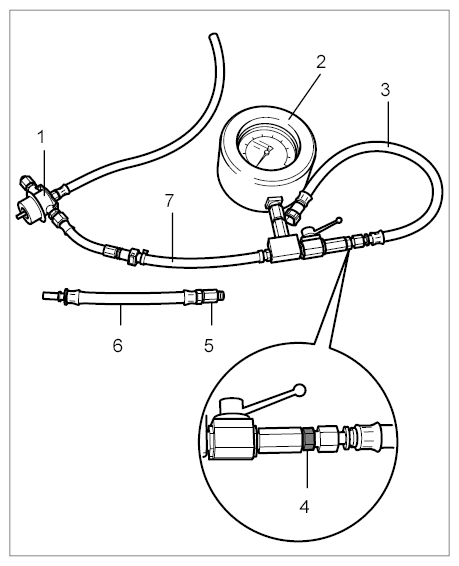

Fig 1: Identifying Fuel Pressure And Fuel Delivery Rate Testing Tools
G09933215Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Measuring Adapter 9705  ; with rapid-action coupling → used for checking the fuel delivery rate. Generates the required counter-pressure of 2.5 bar.
  2. Pressure gauge with stopcock tester K-Jetronic Tester VAG 1318 WE 1291
  3. Connecting line Connection Line 9705/3  ("female" rapid-action coupling)
  4. Adapter 1318/7 from K-Jetronic Tester VAG 1318 WE 1291
  5. Adapter 1318/15 (one-piece connecting piece); accessory for K-Jetronic Tester VAG 1318 WE 1291  ; → used for checking the fuel delivery pressure.
  6. Connecting line Connection Line 9705/3  ("male" rapid-action coupling) → used for checking the fuel delivery pressure.
  7. Adapter 1318/17 (A) from K-Jetronic Tester VAG 1318 WE 1291  ; connection to Measuring Adapter 9705  → used for checking the fuel delivery rate.
