Subsequent Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect tool and reconnect vehicle connections. Absorb and wipe off residual fuel with a cloth.
Fit the fuel supply line -arrow- at the right connection unit.

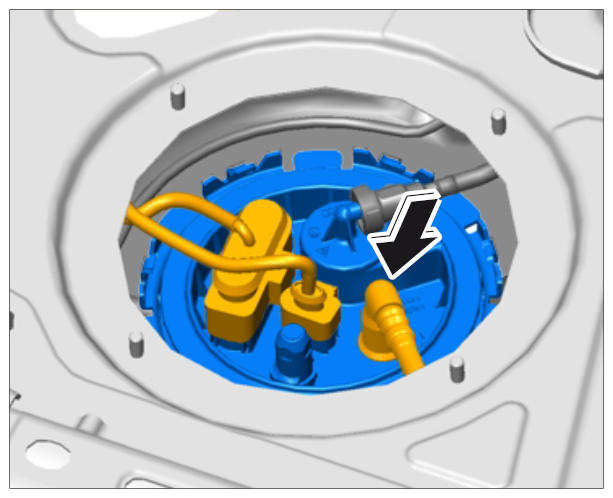

Fig 1: Locating Fuel Supply And Connection Points At Right Connection Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the right cap (figure shows both caps). Then tighten the four fastening nuts. → Tightening torque: 10 Nm (7.5 ft. lb.) Refit the carpeted floor and fix in place with double-sided adhesive tape.

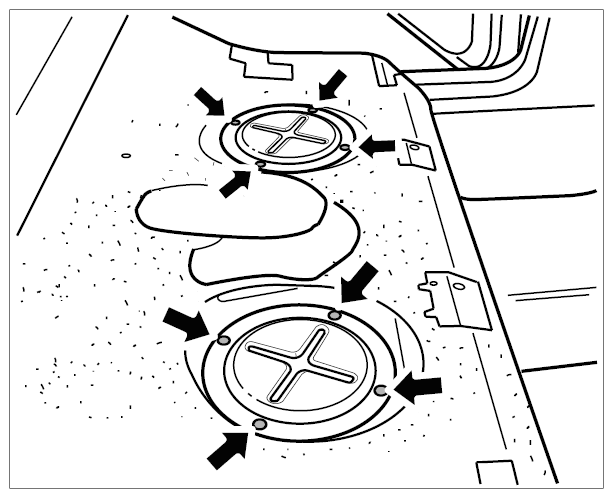

Fig 2: Locating Caps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install rear seat. → INSTALLING 1/3-SPLIT FOLDING REAR SEAT or INSTALLING 2/3-SPLIT FOLDING REAR BACKREST - section on "Installing"
Air the vehicle with the windows open.
