Tools And Materials

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

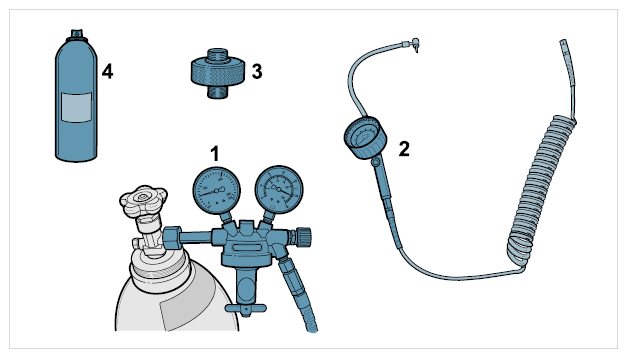

Fig 1: Identifying Leak Test Tools
G09933194Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. The required pressure is set on the compressed gas bottle using the commercially available pressure gauge unit (pressure reducer). The commercially available compressed gas bottle must be filled only with approved leak-locating gases.
  2. Air-spring strut filling unit VAS 6231 WE 1282  with air-spring filling unit; the connection is positioned between the pressure reducer and the adapter. Perform the leak test using individual bursts of pressure.
  3. Adapter 9759  for screwing into the low-pressure fuel line for the high-pressure pump.
  4. Commercially available leak-locating spray for detecting gas leaks.
GAS SPECIFICATION

Leak-locating gas (test medium) Designation Composition/purity
Helium He (gaseous, compressed)
  • 4.6 (minimum quality)
  • 5.0, etc.

not balloon gas!
  • 99.996 volume % (4.6) He
  • 99.999 volume % (5.0) He
Forming gas
  • Forming gas 5
  • 95% nitrogen N2 and 5% hydrogen H2
