Removing Rear Skirt

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
Some steps must be carried out automatically.
Some of the repair illustrations show only one side of the vehicle.

Unscrew screws -1- .

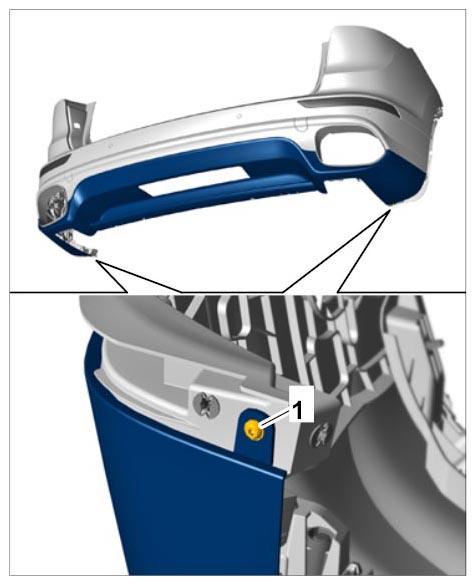

Fig 1: Identifying Rear Panel Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip reinforcement -1- by pulling it up out of the rear skirt -3- .
Release locking lugs -2- on the rear skirt -3- .

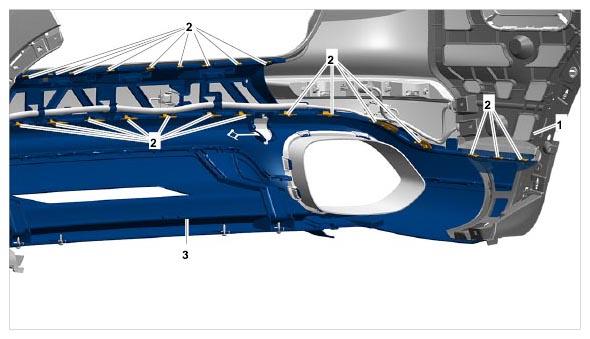

Fig 2: Identifying Reinforcement And Lock Lugs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove rear skirt -3- .
