Technical Values
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

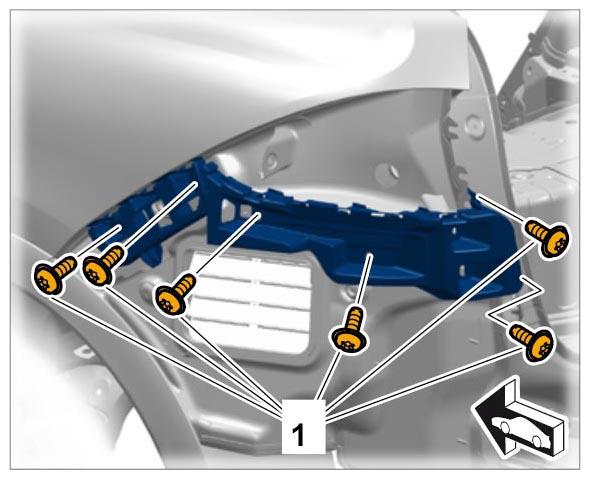

| Fastening screw for side retaining strip | Item 1 | Tightening torque | 3 Nm (2 ftlb.) | ||
|
Removing side retaining strip |
|||||

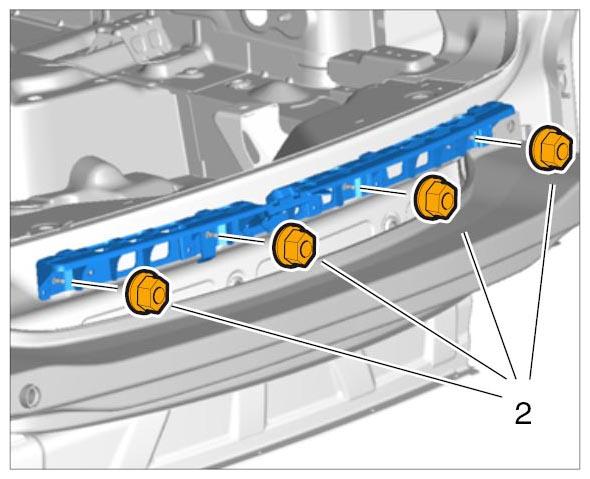

| Fastening nut for upper retaining strip | Item 2 | Tightening torque | 3 Nm (2 ftlb.) | ||
|
Removing upper retaining strip |
|||||
| Fastening nut for lower retaining strip | Item 3 | Tightening torque | 6 Nm (4.5 ftlb.) | ||
| Removing lower retaining strip | |||||
