Installing Upper Retaining Strip

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit upper retaining strip.
  2. Screw in fastening nuts -2-  and tighten to Tightening torque 3 Nm (2 ftlb.)  .

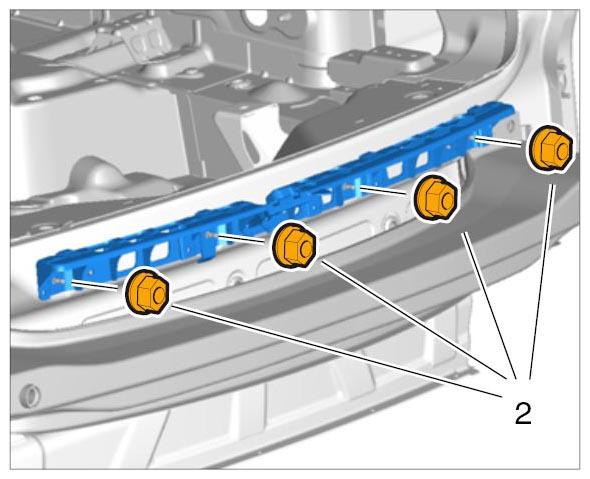

    Fig 1: Identifying Upper Retaining Strip
    G09940000Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Secure wire harness at the retaining strip.
