Installing Side Retaining Strip

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit side retaining strips.
  2. Screw in fastening screws -1-  and tighten to Tightening torque 3 Nm (2 ftlb.)  .

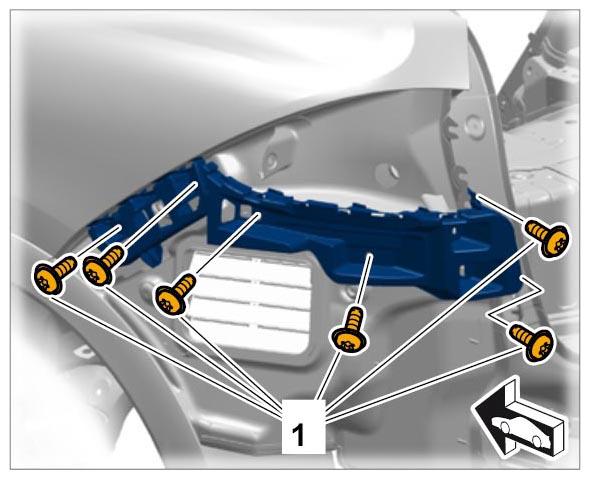

    Fig 1: Installing Side Retaining Strip
    G09939999Courtesy of PORSCHE CARS NORTH AMERICA, INC.
