Installing Lower Retaining Strip

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit lower retaining strip.
  2. Screw in fastening nuts -3-  and tighten to Tightening torque 6 Nm (4.5 ftlb.)  .

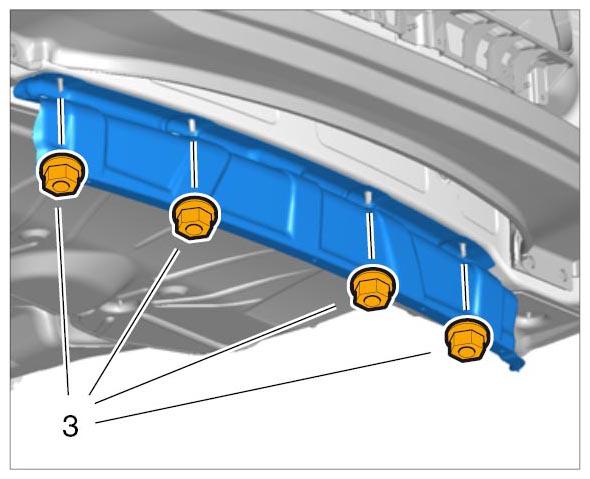

    Fig 1: Identifying Lower Retaining Strip
    G09940001Courtesy of PORSCHE CARS NORTH AMERICA, INC.
