Technical Values
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

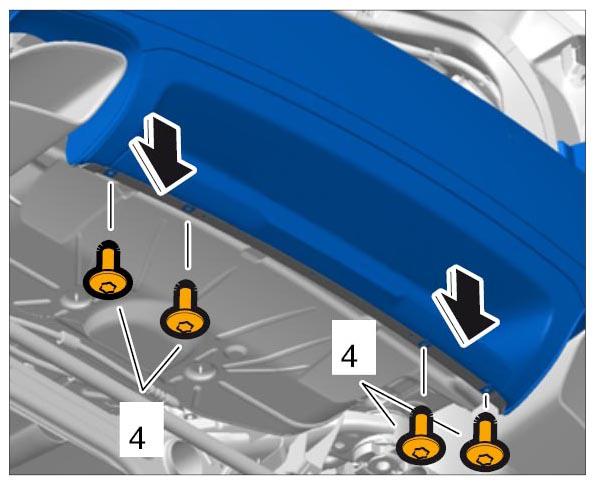

| Fastening screw for rear apron, bottom | Tightening torque | 3.5 Nm (2.5 ftlb.) | |||
|
Loosening rear apron at the bottom |
|||||

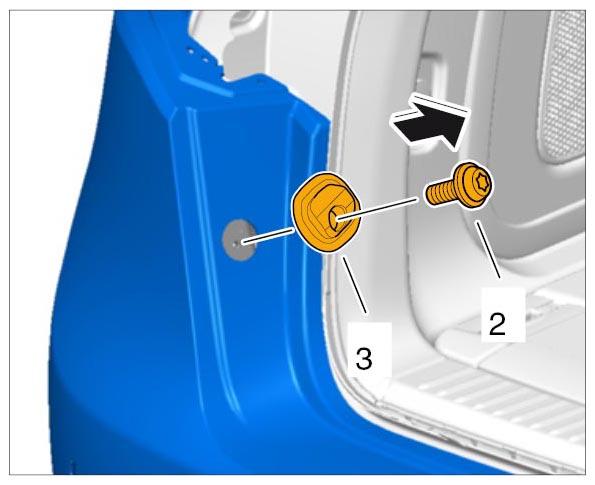

| Fastening screw for rear apron, side | Tightening torque | 3 Nm (2 ftlb.) | |||
| Loosening rear apron at the sides | |||||

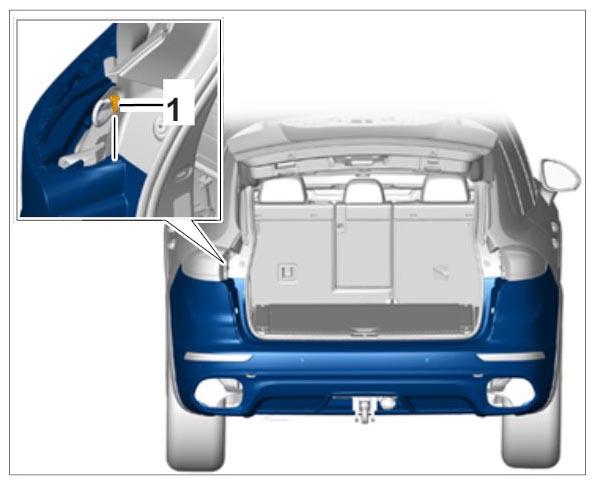

| Fastening screw for guide pin | Tightening torque | 10 Nm (7.5 ftlb.) | |||
|
Removing guide pin |
|||||
| Fastening screw for rear apron, top | Tightening torque | 3 Nm (2 ftlb.) | |||
|
Loosening rear apron at the top |
|||||
