Removing Front Retaining Strip: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.
These must be carried out as a mirror image of the steps shown for the front and rear.

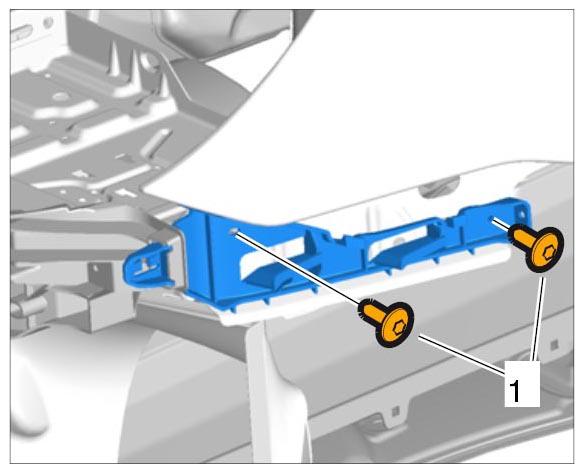

Unscrew front fastening screws -1- .

Fig 1: Loosening Front Retaining Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

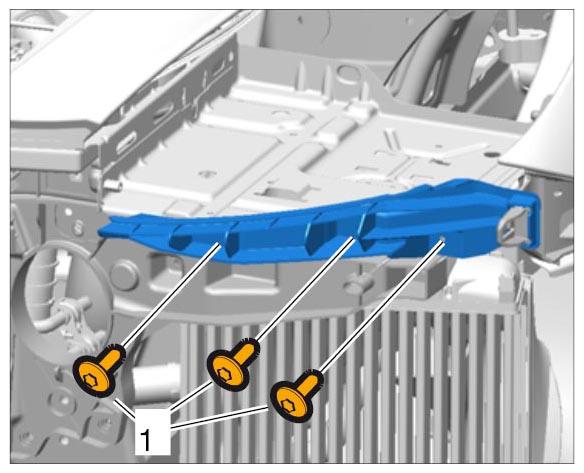

Unscrew fastening screws at the side -1- .

Fig 2: Loosening Side Retaining Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

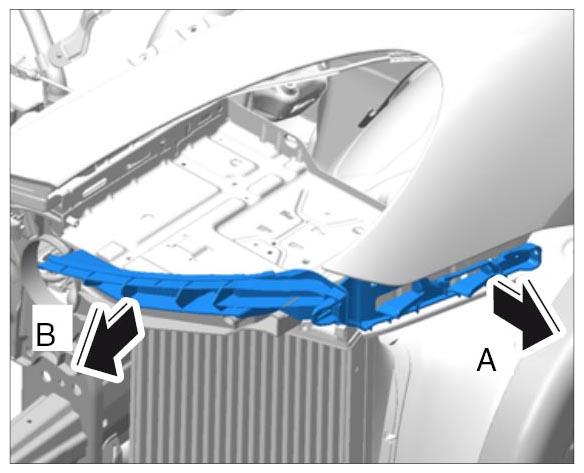

Unclip retaining strip at the sides -A- , then towards the front -B- .

Fig 3: Unclipping Retaining Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove retaining strip.
