Disassembling Front Apron

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove covers for towing lugs -1-  .
    1. 1.1. Press covers for towing lugs -1-  at the top forward out of the front apron.
    2. 1.2. Unhook covers for towing lugs -1-  at the bottom out of the front apron.
    3. 1.3. Unhook safety strap -2-  and remove covers for towing lugs -1-  .

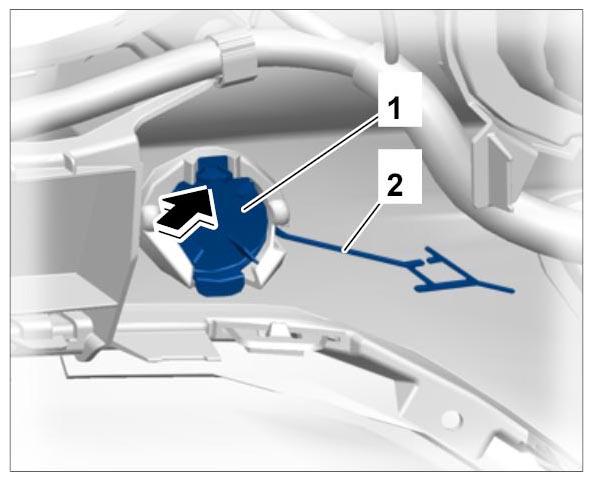

      Fig 1: Removing Covers For Towing Lugs
      G09939963Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove fastening clamps -1-  for hose for headlight cleaning system from the front apron.

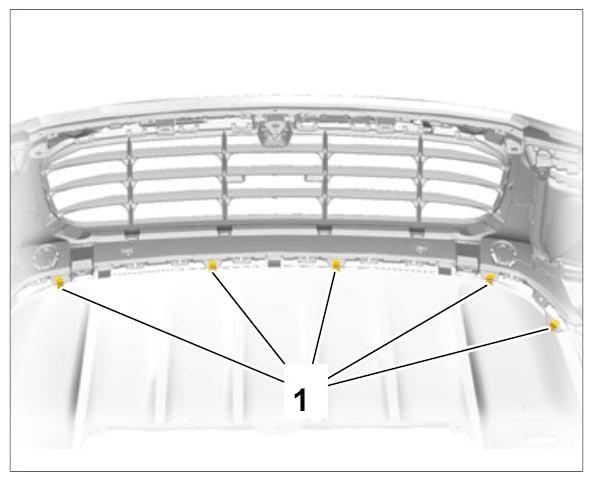

    Fig 2: Removing Fastening Clamps
    G09939964Courtesy of PORSCHE CARS NORTH AMERICA, INC.
