Technical Values
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

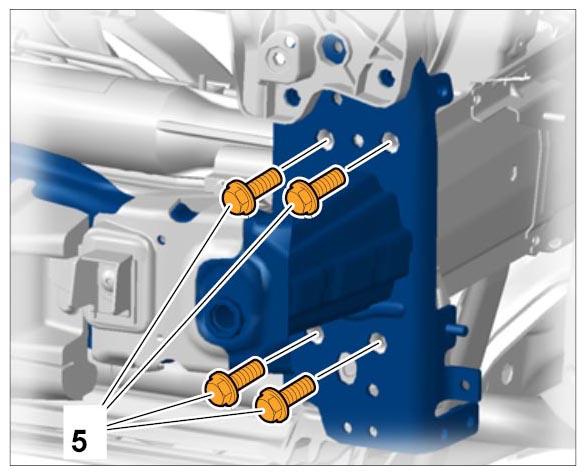

| Fastening screw for body | Item 5 | Tightening torque | 60 Nm (44 ftlb.) | +/-5 Nm (+/- 3.5 ftlb.) | |
|
Detaching bumper |
|||||

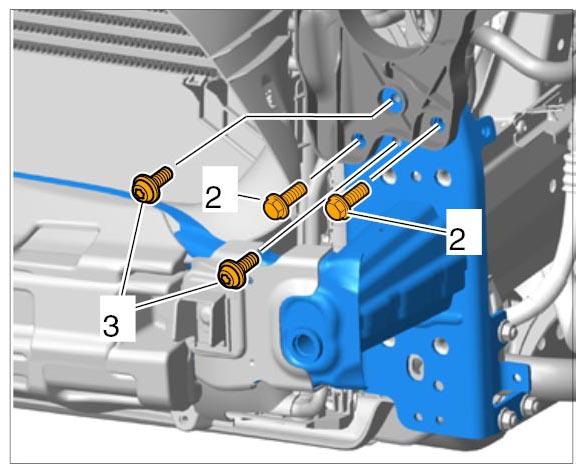

| Fastening screws for lock carrier | Item 2 | Tightening torque | 12 Nm (9 ftlb.) | +/-1 Nm (+/- 0.5 ftlb.) | |
|
Detaching lock carrier and radiator |
|||||
| Fastening screws securing bumper to radiator mounting | Item 3. The thread must be re-cut on a new radiator mounting | Tightening torque | 25 Nm (19 ftlb.) | +/-2.5 Nm (+/- 2 ftlb.) | |
|
Detaching lock carrier and radiator |
|||||

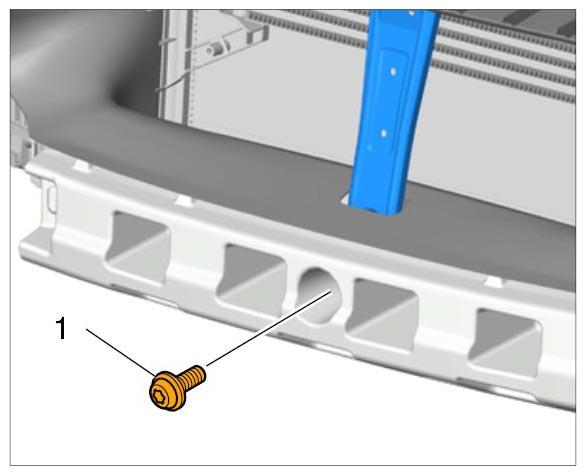

| Fastening screw securing lock support to bumper | Item 1 | Tightening torque | 9 Nm (6.5 ftlb.) | +/-9 Nm (+/- 6.5 ftlb.) | |
|
Loosening lock support |
|||||
