Removing Front Bumper

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Information

Use a marking pen to mark the position of accessories with respect to each other before removal in order to reduce the amount of adjustment work required for gaps and joints.

Unscrew fastening screw -1- from the lock support.

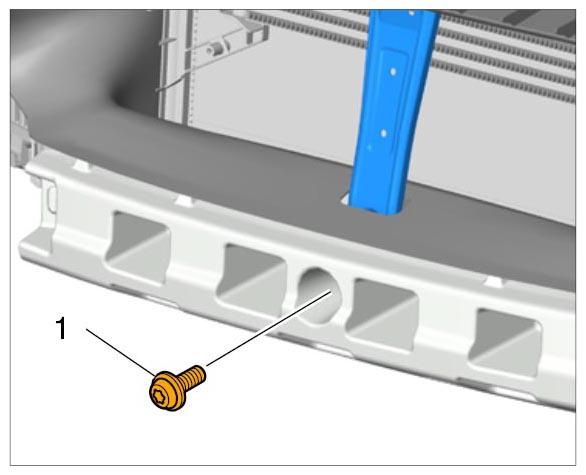

Fig 1: Loosening Lock Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -2- for lock carrier.

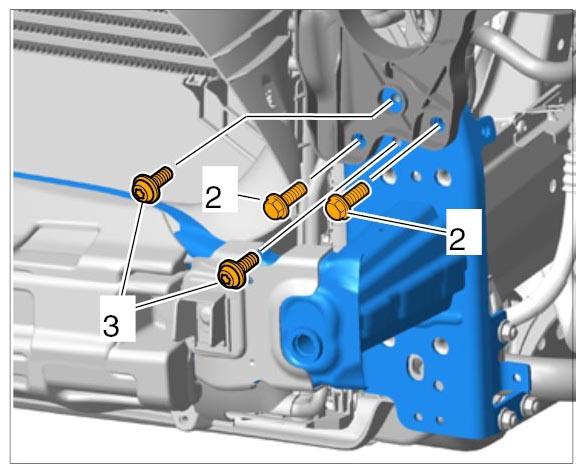

Fig 2: Detaching Lock Carrier And Radiator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -3- for the radiator mounting.
Turn the radiator mounting -4- 90° -A- and support the radiator on the longitudinal members.

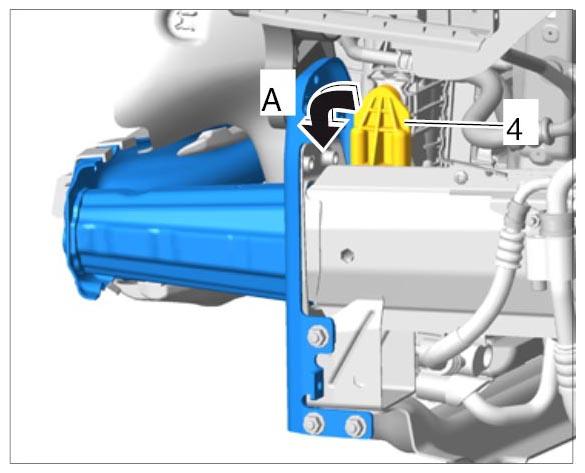

Fig 3: Supporting Radiator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -5- for the longitudinal member.

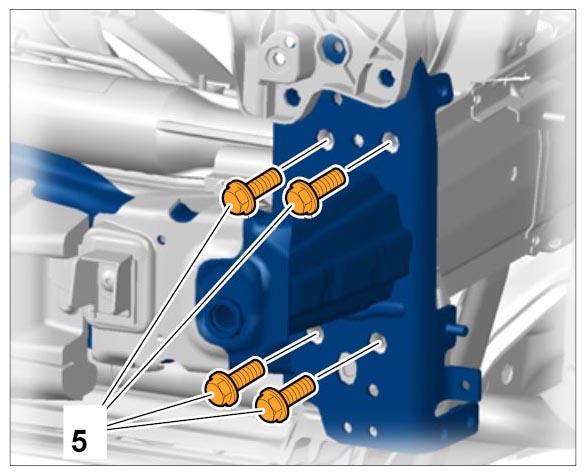

Fig 4: Detaching Bumper
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the bumper forward and remove it in a downward direction.
