Assembly Overview - Charge-Air Cooler
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

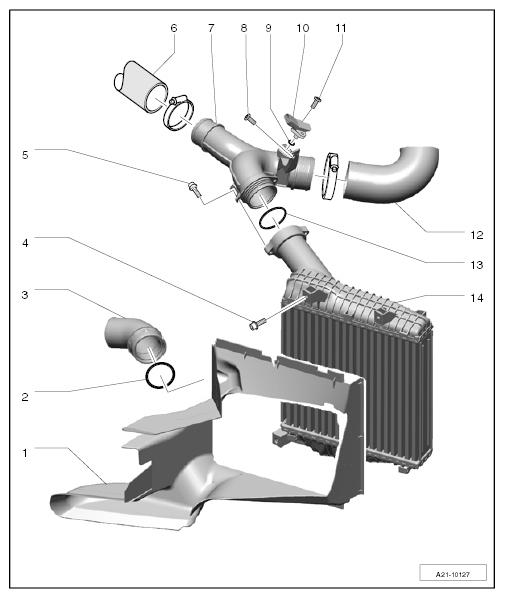

- Air guide for charge-air cooler
- O-ring on air guide hose for turbocharger
- Air guide hose for turbocharger
- Fastening screw for charge-air cooler → Tightening torque: 9 Nm (6.5 ft. lb.)
- Fastening screw for adapter → Tightening torque: 9 Nm (6.5 ft. lb.)
- Air guide hose for right charge-air cooler
- Adapter
- Fastening screw for adapter → Tightening torque: 9 Nm (6.5 ft. lb.)
- O-ring on boost pressure sensor replace
- Boost pressure sensor
- Fastening screw for boost pressure sensor → Tightening torque: 5 Nm (3.5 ft. lb.)
- Air guide hose to throttle valve control unit
- O-ring on adapter on charge-air cooler replace
- Charge-air cooler
- Screw-type clamp securing air guide hose to adapter → Tightening torque: 5.5 Nm (4 ft. lb.)
