Assembly Overview - Charge-Air Cooler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

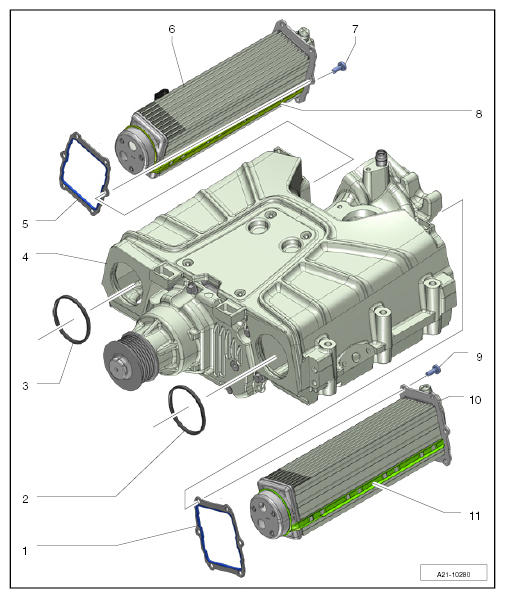

Fig 1: Overview Of Charge-Air Cooler Assembly
G09933464Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Seal replace
  2. O-ring replace
    • Coat the charge-air cooler with engine oil during installation
  3. O-ring replace
    • Coat the charge-air cooler with engine oil during installation
  4. Compressor housing
  5. Seal replace
  6. Right charge-air cooler
  7. Screw replace → Tightening torque: 10 Nm (7.5 ft. lb.)
  8. Seal
    • Not available individually
    • Must not be separated from charge-aircooler
    • Coat with engine oil during installation
  9. Screw replace → Tightening torque: 10 Nm (7.5 ft. lb.)
  10. Left charge-air cooler
  11. Seal
    • Not available individually
    • Must not be separated from charge-aircooler
    • Coat with engine oil during removal and installation
