Installing Charge-Air Cooler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

For tightening torques, tightening sequence and assembly overview, see → 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS

Charge-Air Cooler Seals:

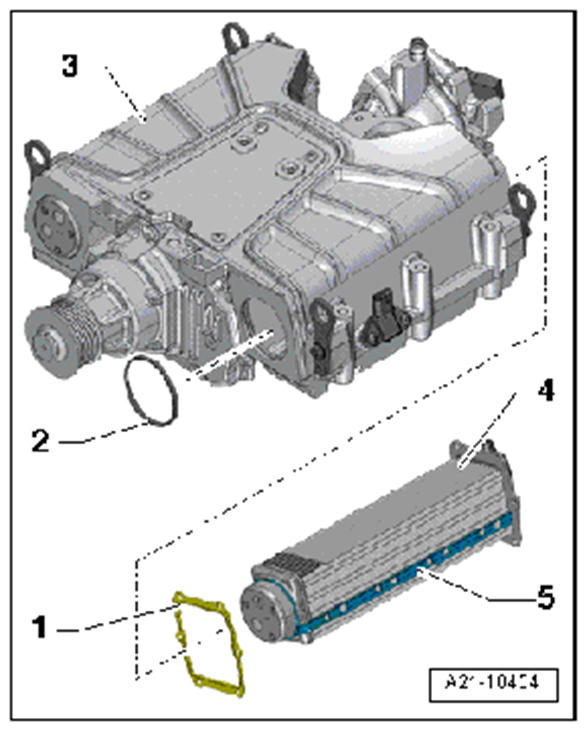

1. 1.1. Check the seal -5- on the charge-air cooler -4- .
2. 1.2. The seal must not be cracked or damaged.
3. 1.3. Push the seal -1- onto the charge-air cooler.
4. 1.4. Insert O-ring -2- into the opening on the compressor housing -3- .

  Fig 1: Identifying Charge-Air Cooler Seals
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Charge-Air Cooler Sealing Surfaces:

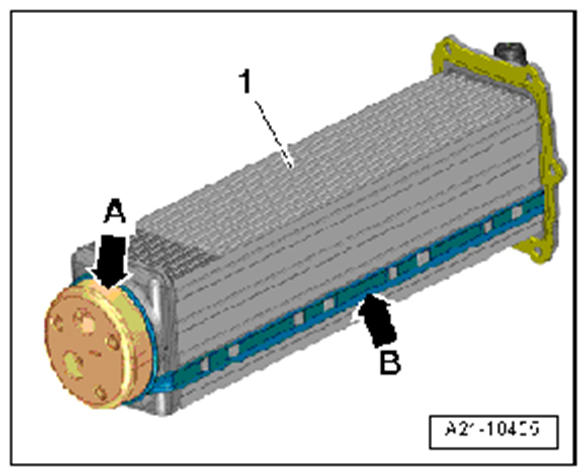

1. 2.1. Coat the sealing surface -arrow A- and seal -arrow B- on the charge-air cooler -1- with engine oil.
2. 2.2. Also coat the inner sealing surface in the compressor housing with engine oil.

  Fig 2: Locating Charge-Air Cooler Sealing Surfaces
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  To make it easier to slide in and press back the charge-air cooler, position the compressor housing vertically in the engine and gearbox support VAS 6095.

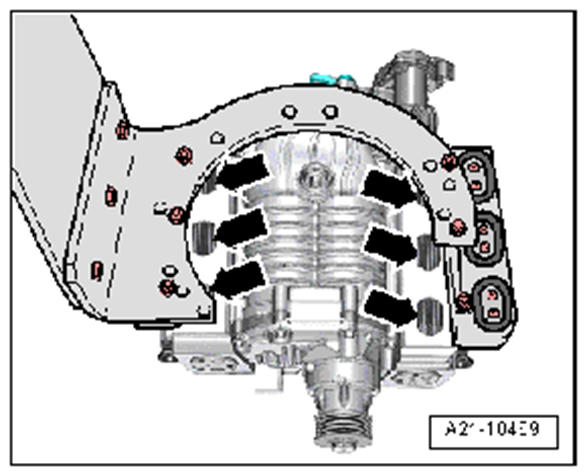

When fitting the charge-air cooler, make sure that the seals are aligned with the cut-outs in the compressor housing -arrows- .

Fig 3: Locating Charge-Air Seals And Cut-Outs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

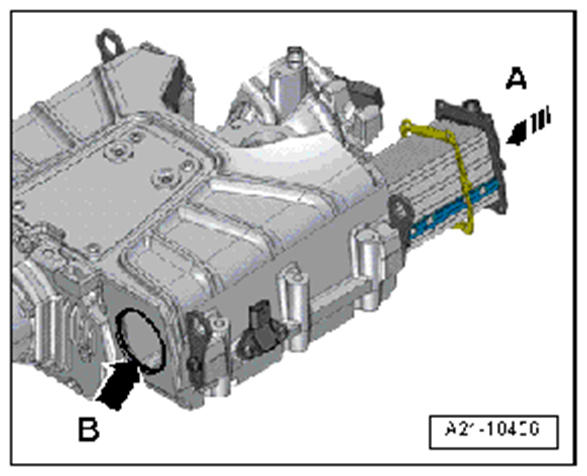

Slide the charge-air cooler as far as it will go by hand into the compressor housing -arrow A- . To do this, slide the front of the charge-air cooler into the bore -arrow B- in the compressor housing.

Fig 4: Sliding Charge-Air Cooler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

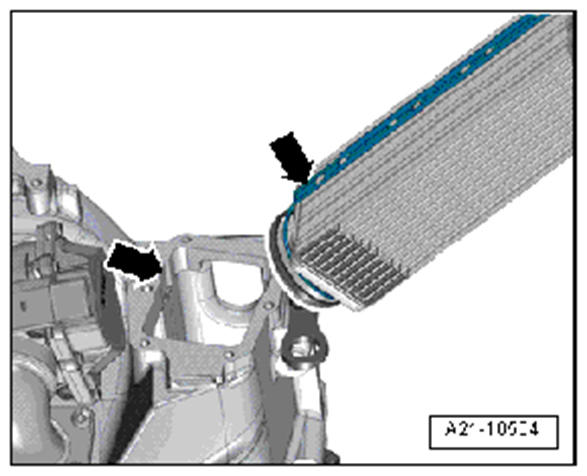

Guide the charge-air cooler through the openings -arrows- on the compressor housing by hand if necessary when inserting it.
As soon as the screw length allows it, screw in two screws loosely by hand to guide the charge-air cooler further.

Fig 5: Identifying Compressor Housing Openings
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

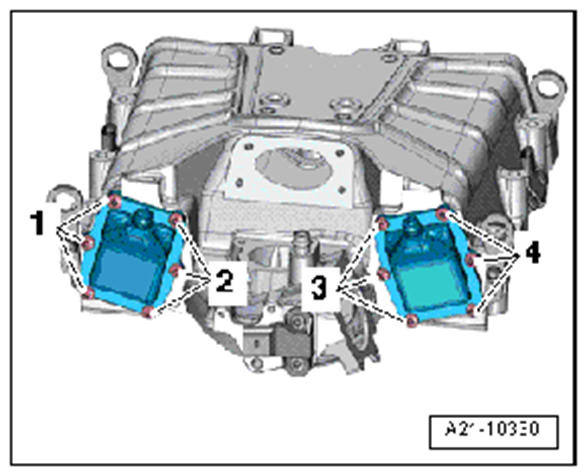

Tighten screws -1, 2- for the charge-air cooler at the left and -3, 4- for the charge-air cooler at the right in diagonally opposite sequence and in small steps.

Fig 6: Identifying Charge-Air Cooler Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Further installation is performed in reverse order.
