Removing Molded Hose

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.

Remove molded hose -1- .
1. 1.1. Release safety clip -arrow- and pull molded hose -1- off the charge-air cooler -2- .
2. 1.2. Loosen screw-type clamp -3- and remove molded hose -1- from air box for the throttle valve -4- .

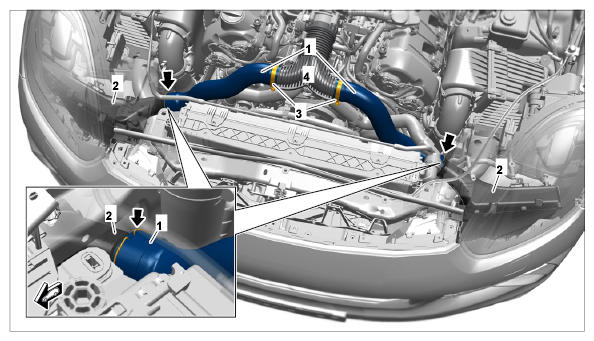

  Fig 1: Identifying Molded Hose
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
