Installing Turbocharger On Cylinders 1-3

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Replace sealing rings, seals and O-rings.

Information

Before installing the new turbocharger, remove all the stoppers on the turbocharger -1 and 2- .

Ensure, in particular, that the conical rubber stopper on the connecting flange for the oil line -2- is also removed.

In some cases, the rubber stopper, as shown in -bottom, 2- , may be pressed slightly into the bore when the turbocharger is supplied. As a result, it is not immediately visible from the outside - particularly when fitting the oil line.

Always remove rubber stoppers before fitting the oil line .

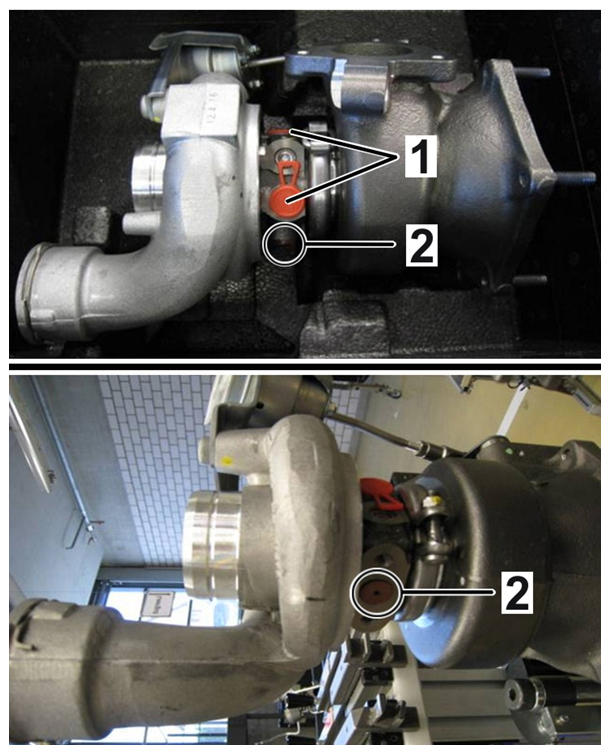

Fig 1: Identifying Stoppers On Turbocharger

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Item 1: Plastic stoppers (not always fitted - depends on the type of packaging in which the turbocharger is supplied) -1- .
Item 2: Rubber stopper (always fitted) -2- .

Clean sealing faces between the exhaust manifold -1- cylinder head and replace seal -2- .
Fit turbocharger with exhaust manifold -1- on cylinder head for cylinders 1 - 3.
Use new fastening nuts -5- .

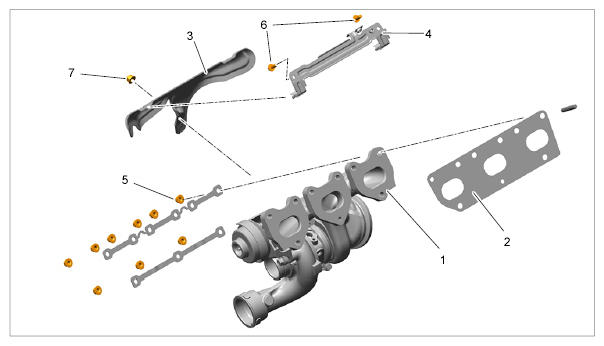

Fig 2: Identifying Exhaust Manifold/Turbocharger Related Components (Cylinders 1-3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten new fastening nuts to the specified tightening torque in the sequence -1-9- .

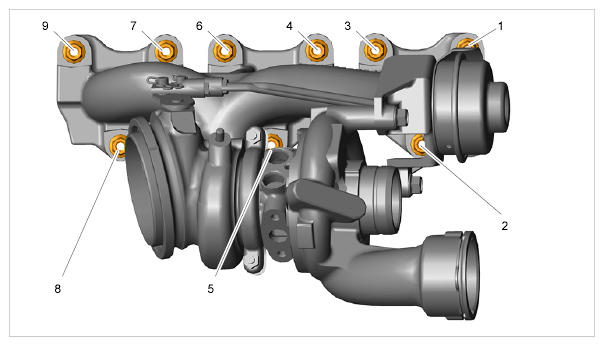

Fig 3: Identifying Exhaust Manifold/Turbocharger Nut Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Further installation is performed in reverse order.
