Replacing Charge Air Cooler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove accessories.

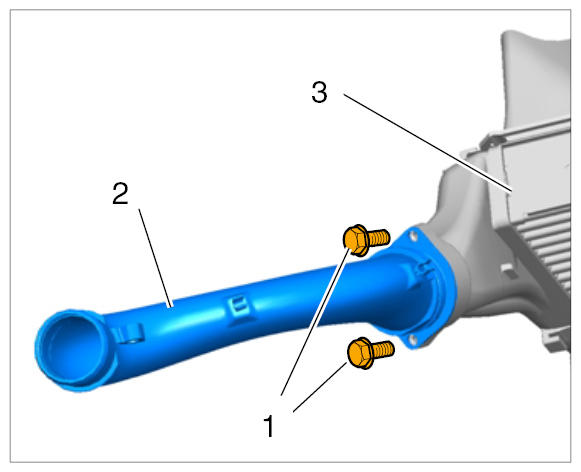

1. 1.1. Unscrew fastening screws -1- for the charge air line -2- at the charge air cooler -3- .

  Fig 1: Identifying Charge Air Line To Charge Air Cooler Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

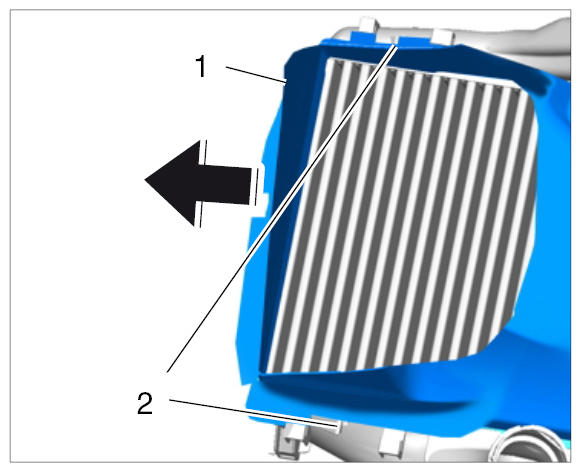

2. 1.2. At the rear air guide -1- , unclip the side locking mechanisms -2- and pull out the air guide.

  Fig 2: Removing Rear Air Guide From Charge Air Cooler
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

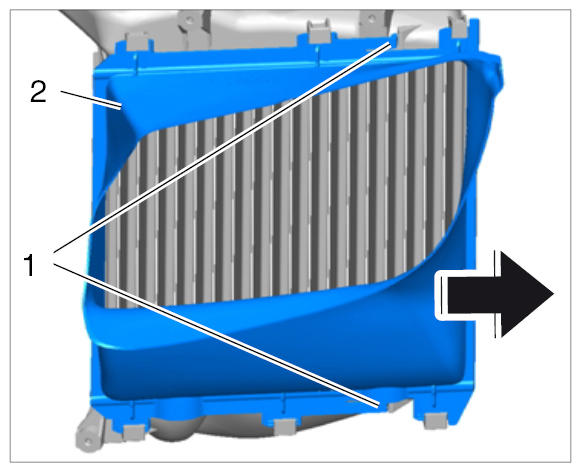

3. 1.3. At the front air guide -2- , unclip the side locking mechanisms -1- and pull out the air guide.

  Fig 3: Removing Front Air Guide From Charge Air Cooler
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The accessories are installed in reverse order to removal.
1. 2.1. Tighten fastening screws on the intake manifold to → Tightening torque: 5.5 Nm (4 ft. lb.) .
