Removing Charge Air Cooler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

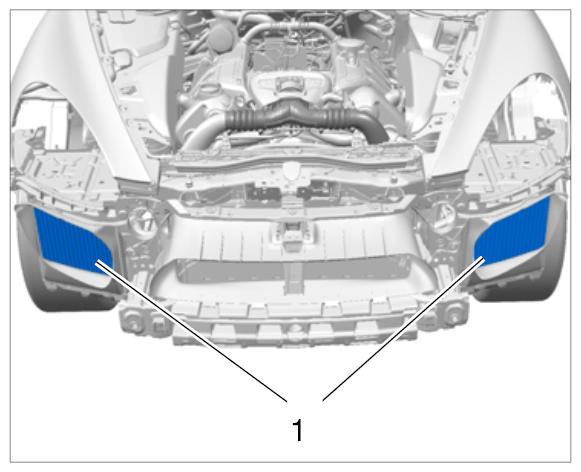

Fig 1: Identifying Charge Air Cooler Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unless specified otherwise, removal and installation is the same on both sides .

Remove suction hose.

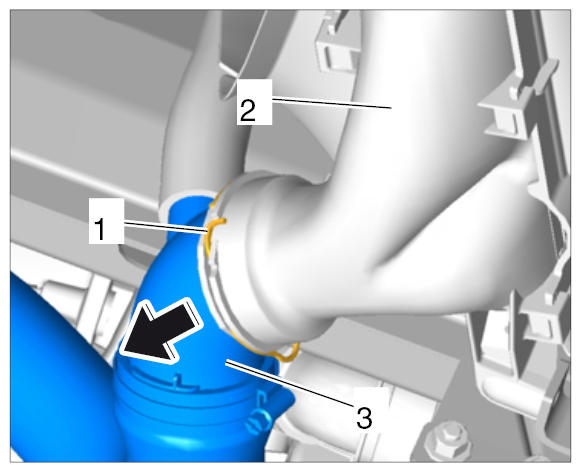

Fig 2: Removing Suction Hose
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Remove foam part -1- .
2. 1.2. Remove suction hose -2- by turning and pulling it.
Remove charge air line on air box for throttle housing (Y-shaped pipe).
1. 2.1. Open hose clamp -1- and slide it back.
2. 2.2. Unclip vacuum hose from the two clips under the charge air line.
3. 2.3. Remove circlip -2- on holder -4- for charge air hose -3- and slide charge air hose backwards out of the bracket.

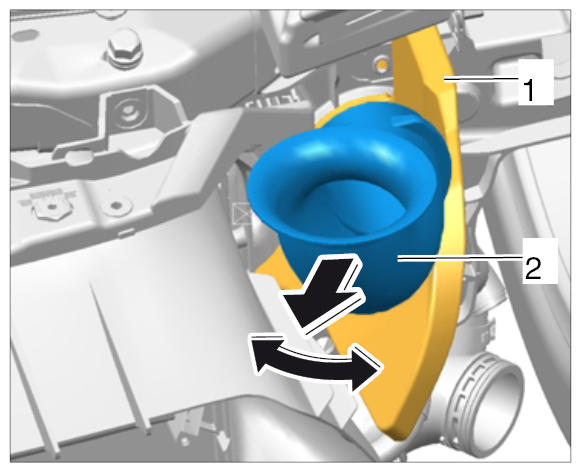

  Fig 3: Removing Charge Air Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 2.4. Right side only: Remove hose -1- at the charge air line by pressing the circlip together at the sides -A- and pull off the hose -1- (-B- ).

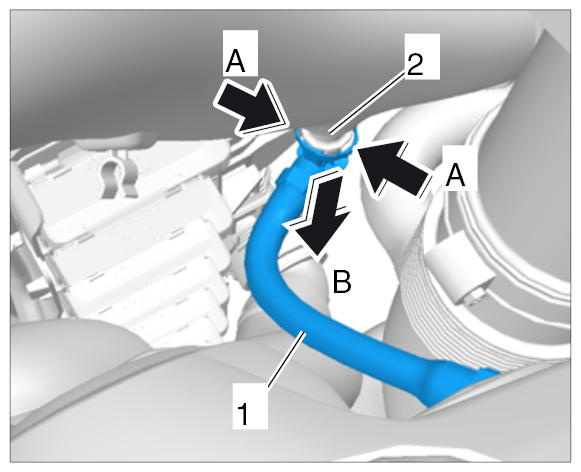

  Fig 4: Locating Hose On Right Charge Air Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove pressure pipe.
1. 3.1. Raise the vehicle.
  → 4X00IN LIFTING THE VEHICLE
2. 3.2. Lever out wire clip -1- using a screwdriver and pull the pressure pipe -3- off the charge air cooler -2- .
3. 3.3. Put wire clip -1- back into installation position immediately.

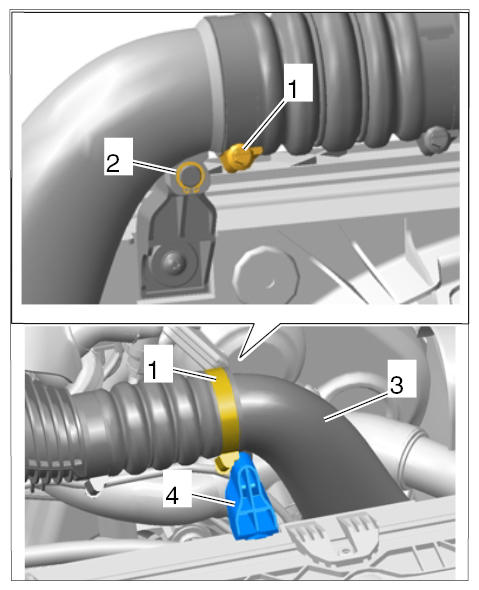

Fig 5: Removing Pressure Pipe
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove charge air cooler.
1. 4.1. Unscrew three fastening screws -1- .
2. 4.2. Pull charge air cooler and charge air line outwards -arrow- .

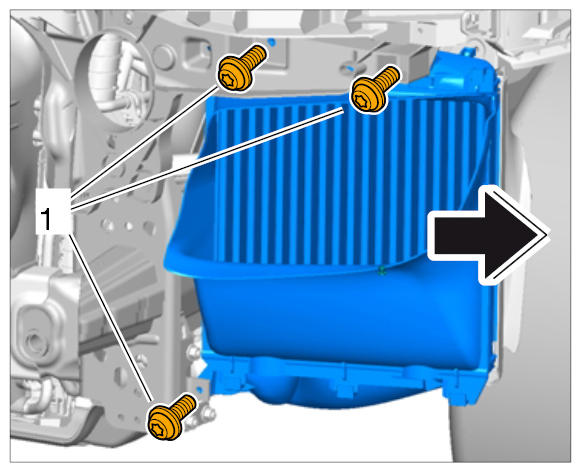

Fig 6: Removing Charge Air Cooler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
