Installing Charge Air Cooler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

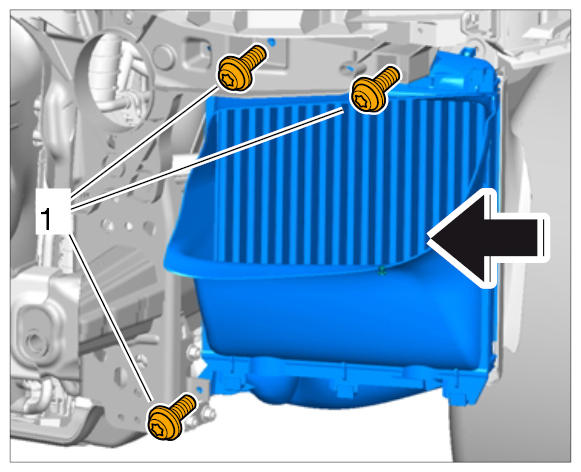

Install charge air cooler.
1. 1.1. Guide charge air cooler and charge air line inwards from the outside -arrow- .
2. 1.2. Tighten three fastening screws -1- to → Tightening torque: 7 Nm (5 ft. lb.) .
Fig 1: Installing Charge Air Cooler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

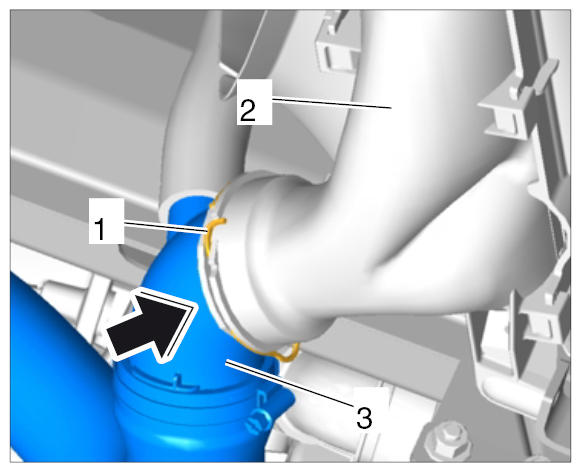

Install pressure pipe.
1. 2.1. Push pressure pipe -3- into the connection piece on the charge air cooler -2- until it clicks into place.

  Fig 2: Installing Pressure Pipe
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Lower the vehicle.

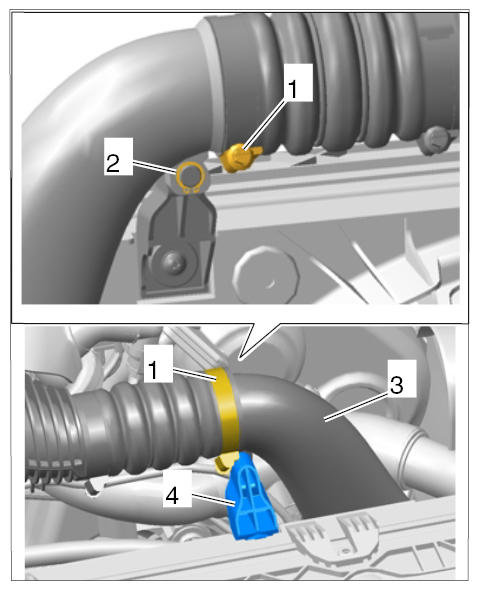

Install charge air line.
1. 3.1. Push charge air line -3- onto the holder -4- and slide it into the air box for throttle housing (Y-shaped pipe).
2. 3.2. Fit circlip -2- for holder.
3. 3.3. Tighten hose clamp -1- .
4. 3.4. Clip vacuum hose into the two clips under the charge air line.

  Fig 3: Installing Charge Air Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

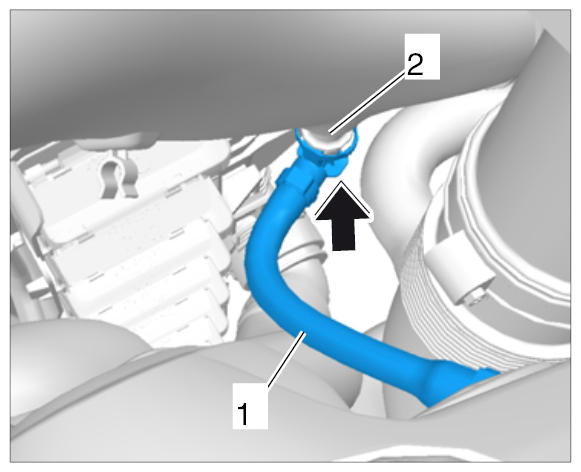

5. 3.5. Right side only: Push hose -1- onto the connection piece for the charge air line -2- .

  Fig 4: Installing Hose On Charge Air Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
