Removing Intake Manifold

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

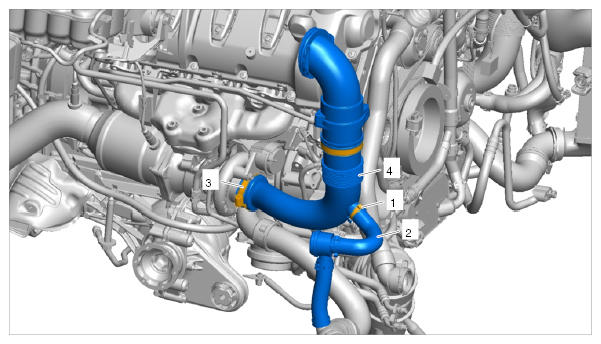

Fig 1: Identifying Turbocharger Intake Pipe

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosen hose clamp -1- and pull off hose for recirculating air valve -2- .
NOTE:
Sheared-off sealing grommet on turbocharger intake pipe
- Risk of damage to turbocharger
→ A previously used intake pipe must not be re-used

→ Replace intake pipe and sealing grommet

→ Replace hose clamp

→ Coat area around sealing grommet on new intake pipe with water during fitting
Loosen hose clamp -3- and remove intake manifold -4- .
Dispose of intake manifold and hose clamp .
