Installing Intake Manifold

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

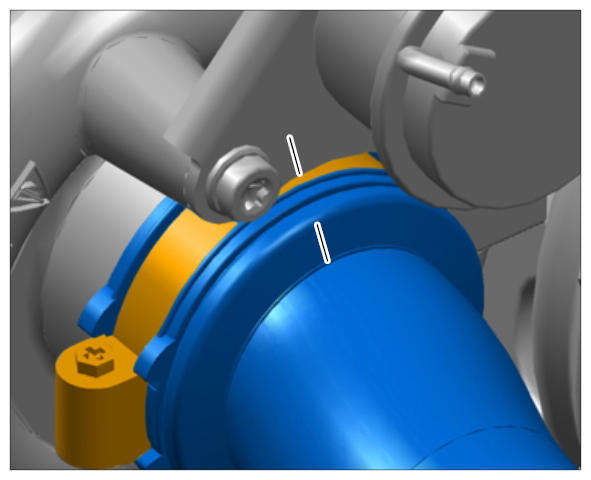

Fig 1: Identifying Turbocharger Intake Pipe

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Sheared-off sealing grommet on turbocharger intake pipe

Risk of damage to turbocharger

→ A previously used intake pipe must not be re-used

→ Replace intake pipe and sealing grommet

→ Replace hose clamp

→ Coat area around sealing grommet on new intake pipe with water during fitting

Install new intake manifold -4- with a new sealing grommet
Observe marking for correct installation position → Installation position of intake manifold

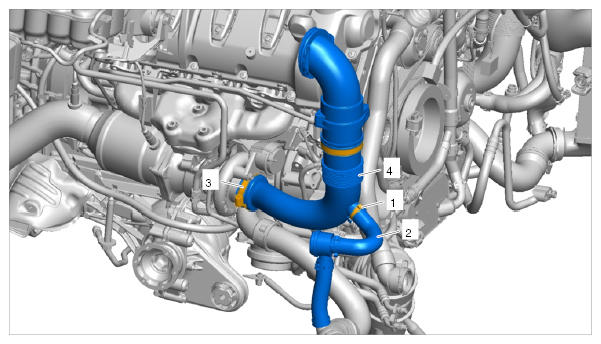

Fig 2: Identifying Intake Manifold Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit and tighten new hose clamp -3- . → Tightening torque: 5.5 Nm (4 ft. lb.)
Fit hose for recirculating air valve -2- and tighten hose clamp -1- .
