Installing Drive Head

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

For tightening torques, tightening sequence and assembly overview, see → 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS

Clean sealing faces to remove any oil and grease.
Before installation, always clean the threaded bores for the drive head in the bearing cover with a thread cutter to remove any residual particles.
Information

It will not be possible to check the oil level later.
Fill 150 ml of compressor oil into the bearing cover.
Insert decoupling spring into the decoupling element.

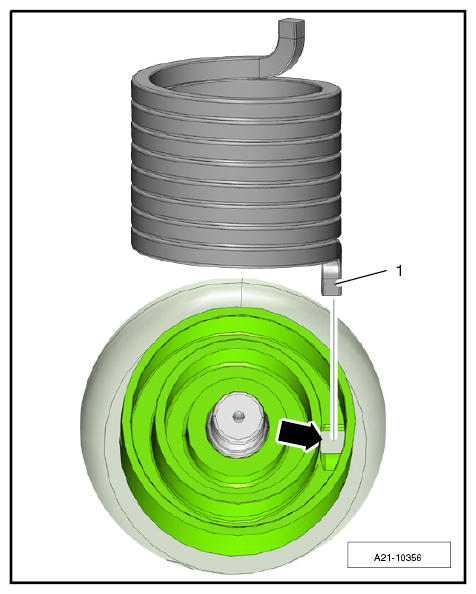

1. 4.1. The end -1- of the decoupling spring must engage in the bore -arrow- in the decoupling element at the rear.

  Fig 1: Identifying Decoupling Spring
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Apply a thin coat of sealant on the sealing face of the drive head.
Fit drive head on the compressor housing (be careful with the dowel sleeves).
At the same time, turn the poly-V-belt pulley until the other end of decoupling spring engages in the bore in the decoupling element at the front.
Further installation is performed in reverse order.
