Installing Compressor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

For tightening torques, tightening sequence and assembly overview, see → 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS

Installation is performed in reverse order. Pay particular attention to the following:
1. 1.1. Replace seals.
2. 1.2. Secure all hose connections with standard hose clamps.
When fitting the compressor, make sure that the connection piece for positive crankcase ventilation is installed at the correct position.

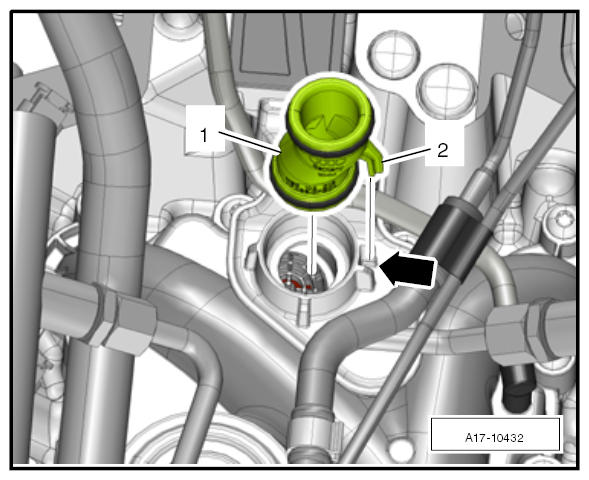

Fig 1: Locating Connection Piece Of Positive Crankcase Ventilation
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
