Securing Compressor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

For the leak test, the seals on the sealing elements should seal the openings in the compressor housing.

Compressor removed. → 211419 REMOVING AND INSTALLING COMPRESSOR
Insert gearbox support and sealing elements into the engine bracket.

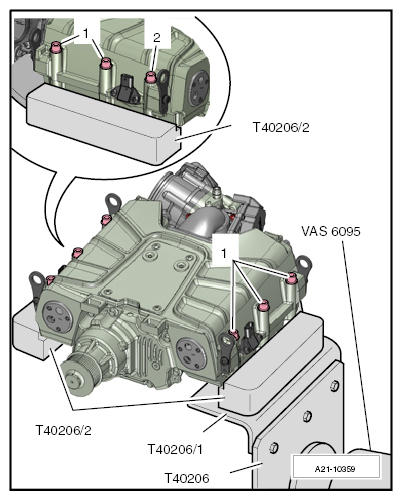

Secure the compressor on the gearbox support as shown. For fitting screws -1- , use the bores "1", "4", "9" and "13" .
On the front right, use screw -2- to screw the support -T40206/2- directly to the compressor housing.

Fig 1: Securing Compressor To Gearbox Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

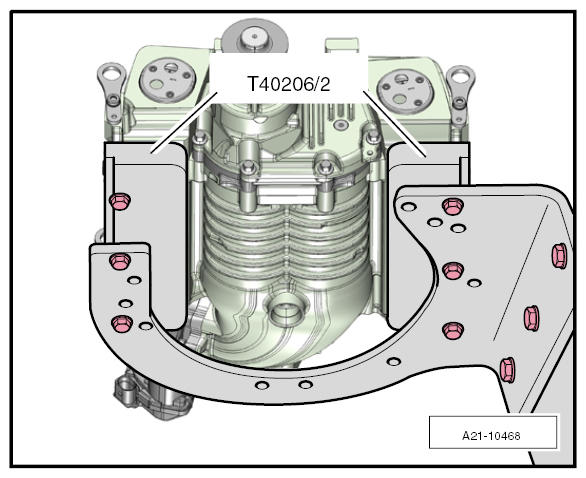

Installation Position Of Supports:

The seals on the supports seal the openings in the compressor housing.

Fig 2: Identifying Supports Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
