Checking Compressor For Leaks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

For illustration purposes, the compressor is shown without the gear support.

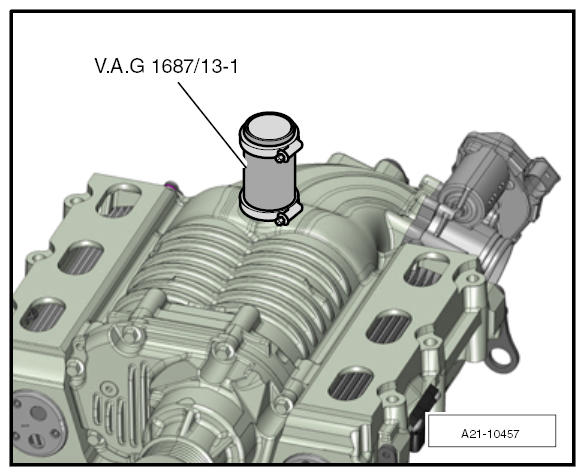

Secure the Hose Adapter -VAG 1687/13-1- at the bottom of the compressor housing.
Secure hose connections with hose clamps.

Fig 1: Identifying Hose Adapter VAG (1687/13-1)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

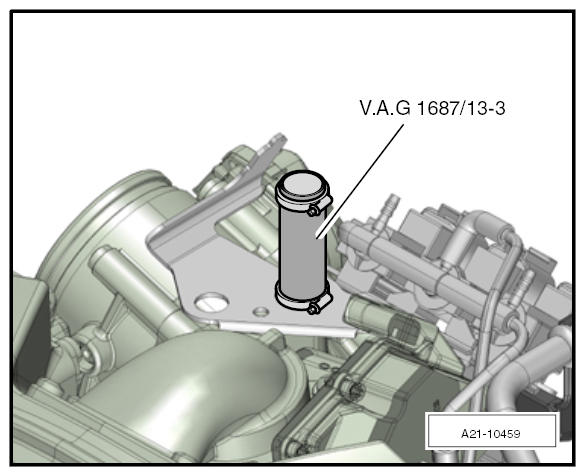

-Hose Adapter VAG 1687/13-3- must be secured at the top of the compressor housing.
Secure hose connections with hose clamps.

Fig 2: Identifying Hose Adapter VAG. (1687/13-3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

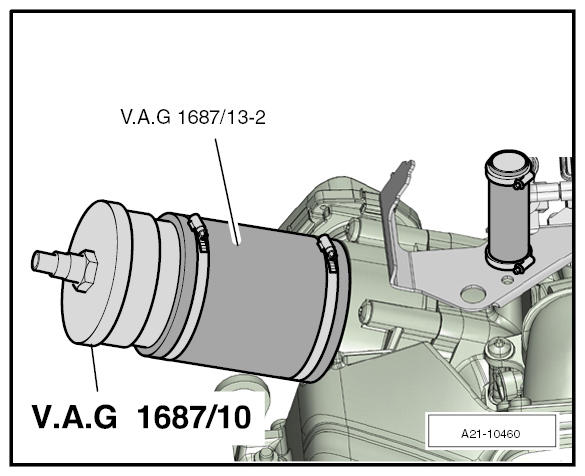

Secure hose adapter -VAG 1687/13-2 - to the compressor housing with adapter -VAG 1687/10- .
Secure hose connections with hose clamps.

Fig 3: Identifying VAG. (1687/13-2) With Adapter VAG (1687/10)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

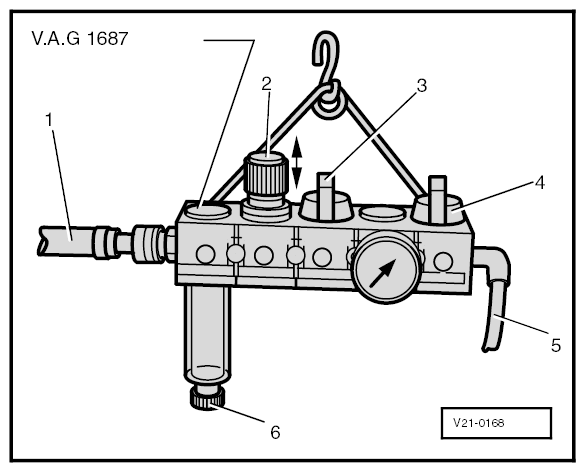

Prepare Charge Air System Tester -VAG 1687- as follows:
Unscrew pressure control valve -2- completely and close valves -3- and -4- .

Fig 4: Identifying Charge Air System Tester Components
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

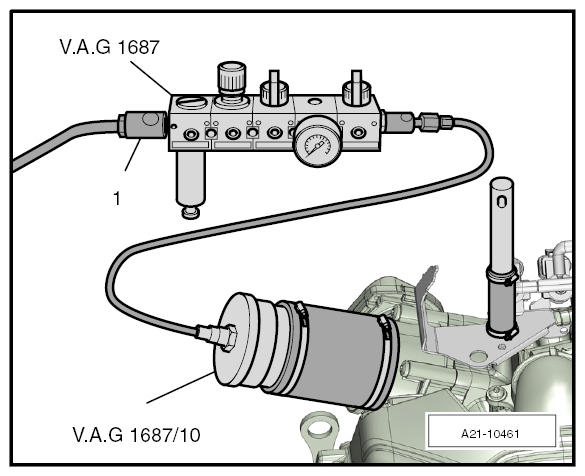

Connect the charge air system tester to compressed air -1- and to the Adapter -VAG 1687/10- as shown.

Fig 5: Connecting Tester To Adapter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
If there is water in the inspection glass, open the drain screw -6- and drain the water.
Open valve -3- .

Fig 6: Identifying Charge Air System Tester Components
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Use the pressure control valve -2- to set the pressure to 0.5 bar .
Open valve -4- and wait until the test circuit is full. Set the pressure to 0.5 bar again if necessary.

Close valve -3- and check the pressure gauge.

Fig 7: Identifying Charge Air System Tester Components
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The pressure must not drop by more than 0.1 bar in 30 seconds .
Check the charge air system for leaks by listening for hissing noise, by touch, using commercially available leak detection spray or using the ultrasonic detector UD 150 WE 1038 .
