Installing Actuator For Camshaft (Camshaft Controller)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The tightening specifications for the basic engine are stored centrally (→ 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS ).

Tightening Torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

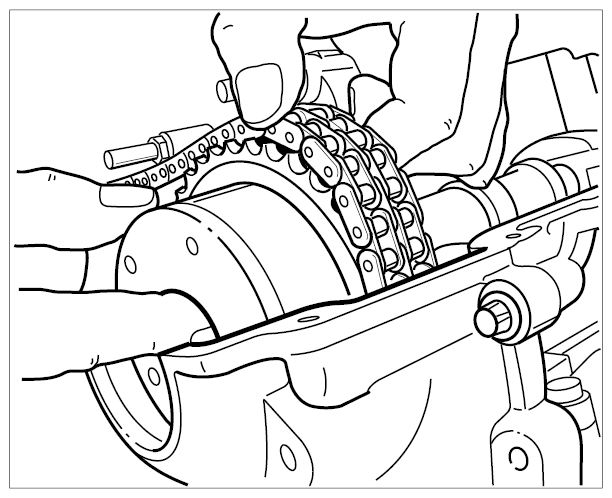

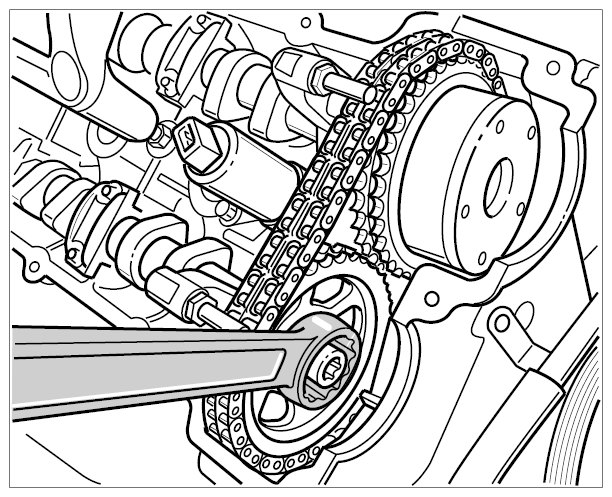

Lift timing chain and place camshaft controller carefully on the camshaft → Camshaft controller on camshaft . In order to have sufficient play in the timing chain, turn camshaft timing gear back and forth as required → Turning camshaft timing gear . Place timing chain on the camshaft controller.

Fig 1: Installing Camshaft Controller On Camshaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 2: Turning Camshaft Timing Gear
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position fastening screw and hexagon on the camshaft controller and screw in loosely (it must still be possible to turn the camshaft controller) → Camshaft adjustment .

Fig 3: Identifying Camshaft Controller Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

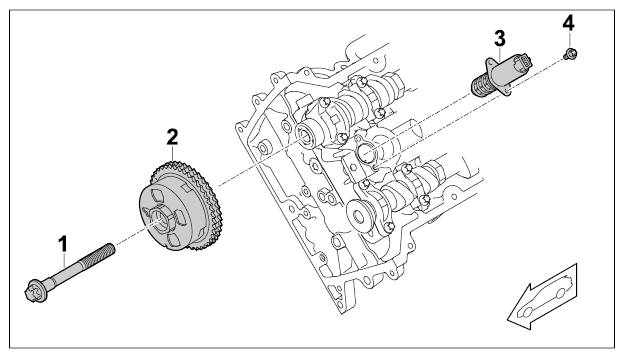

1. Screw, M12 Tighten Fully After Setting Timing . Always Use A New Screw.
2. Camshaft Adjuster With Integrated Hexagon For Countering
3. Hydraulic Valve For Camshaft Control
4. Screw, M5 x 12
Screw in the four screws of the sprockets and camshaft controller as far as possible (it must still be possible to turn the sprockets and camshaft controller to adjust the timing).
Set the timing. → 150516 SETTING TIMING FOR CAMSHAFTS . Do not tighten the sprockets and camshaft controller to the final Tightening Torque until the timing has been set.
