Removing Actuator For Camshaft

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen and unscrew central sensor.
    1. 1.1. Loosen central screw -2-  using Socket Wrench For Camshaft 9863  and counter using a Ring Wrench Insert 9863/1  at the camshaft controller -3-  while doing this.

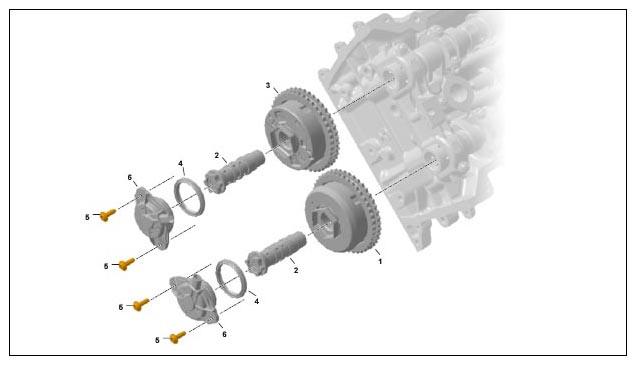

      Fig 1: Identifying Camshaft Controllers
      G09932625Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull both camshaft controllers off the camshaft and remove them one by one.
