Installing Actuator For Camshaft
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
Tightening Torques, tightening sequence and assembly overviews for the engine and transmission:
- Group 1: → 1X00IN TECHNICAL VALUES
- Group 2: → 2X00IN TECHNICAL VALUES
- Group 3: → 3X00IN TECHNICAL VALUES
- Installation is performed in reverse order. Pay particular attention to the following:

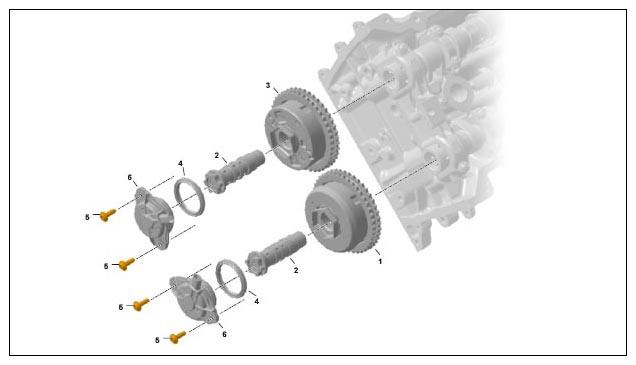

| Tightening Sequence For Central Screw For Camshaft Controller | ||
|---|---|---|
| Result: | Cylinder Bank: | Camshaft: |
| 1. | Bank 1, Cylinders 1-3 | Exhaust |
| 2. | Bank 1, Cylinders 1-3 | Intake |
| 3. | Bank 2, Cylinders 4-6 | Intake |
| 4. | Bank 2, Cylinders 4-6 | Exhaust |
