Removing Cylinder Head Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cylinder head cover.
    1. 1.1. Unscrew oil cap.
    2. 1.2. Unscrew all fastening screws -3-  .
    3. 1.3. Lift off cylinder head cover (valve cover) and set it down on a clean surface.

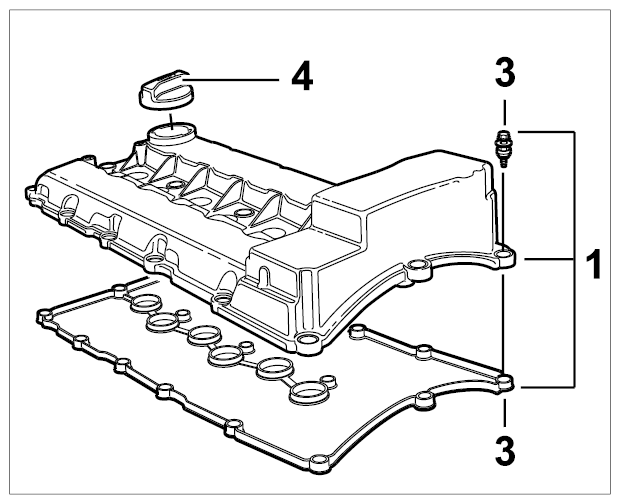

      Fig 1: Identifying Cylinder Head Cover (V6 DFI Engine)
      G09932591Courtesy of PORSCHE CARS NORTH AMERICA, INC.
