Removing Cylinder Head Cover: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
The procedure for removing the left and right cylinder head cover is the same. Illustration shows only the left side.
RoW vehicles:

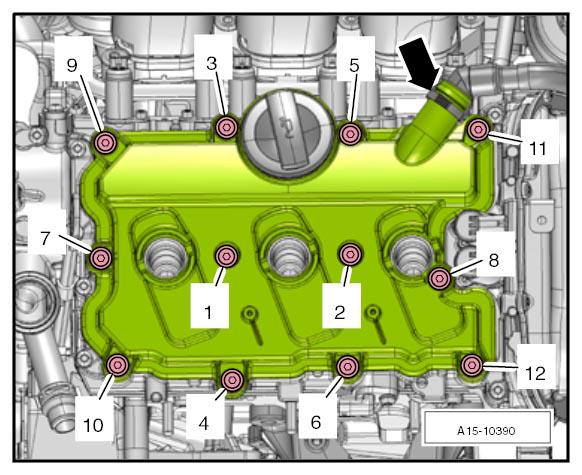

- Remove hose for positive crankcase ventilation -arrow-
by pressing the release buttons.
Unscrew screws for the left cylinder head cover in the sequence -1... 12 - and remove cylinder head cover.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
USA vehicles:
Information
Danger of violation of exhaust emission legislation on USA vehicles.
- Do not open hose connection!
- Unscrew screws for the left cylinder head cover in the sequence -1... 12 - and set cylinder head cover together with the connected positive crankcase ventilation hose -arrow- aside.
