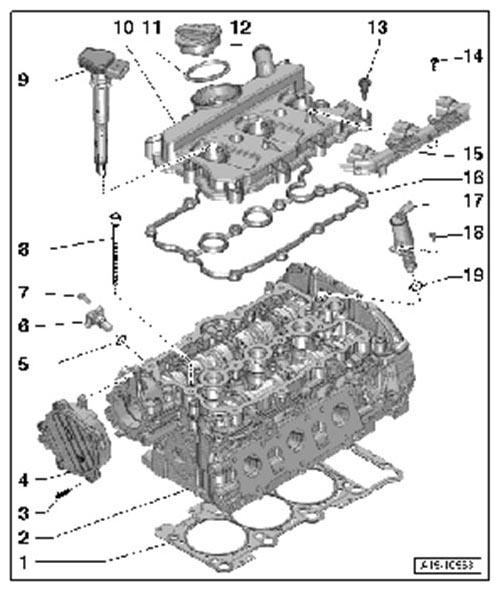

Assembly Overview - Cylinder Head
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Cylinder-Head Gasket Replace
- Cylinder Head
- Screw
- Vacuum Pump
- O-Ring Replace
- Hall Sender
- Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
- Screw Replace → Initial Tightening: 40 Nm (30 ft. lb.) → Tightening Torque: +90° → Final Tightening: +90°
- Ignition Coil
- Cylinder Head Cover
- Seal Replace If Damaged Or Leaking
- Cover
- Screw Replace If Seal Is Damaged → Tightening Torque: 9 Nm (6.5 ft. lb.)
- Screw → Tightening Torque: 5 Nm (3.5 ft. lb.)
- Connector Strip For Ignition Coils
- Cylinder Head Cover Seal Replace If Seal Is Damaged
- Solenoid Valve For Camshaft Control On Intake Side
- Screw Replace → Tightening Torque: 5 Nm (3.5 ft. lb.)
- O-Ring Replace
