Valve Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

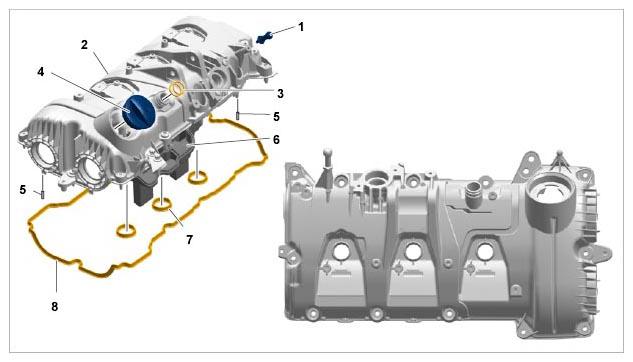

Fig 1: Identifying Valve Cover (Cylinders 1-3)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine Cover Mounting
Valve Cover
O-Rings
Top - O-ring, 22.5 x 2.5 FPM

Bottom - O-ring, 22.5 x 2.5 HNBR
Oil Cap
Centering Pin
Oil Mist Separator
Cylinder-Head Cover Gasket, Inner
Cylinder-Head Cover Gasket
