Tightening Specifications For DIE-CAST Valve Covers

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

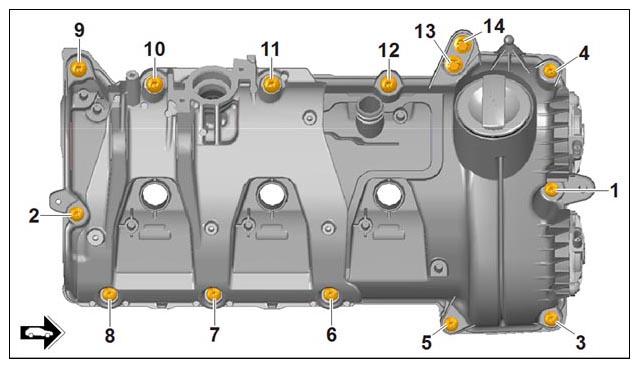

Fig 1: Valve Cover Tightening Sequence (Cylinders 1-3)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1-14 - Always observe the specified tightening sequence!

1+2 - Aluminum screw, M6 x 30 → Initial tightening: 4 Nm (3 ft. lb.)

13+14 - Screw, M8 x 35 → Tightening Torque: 23 Nm (17 ft. lb.)

9-12 - Aluminum screw, M8 x 35 → Initial tightening: 10 Nm (7.5 ft. lb.) → Final tightening: +90°

3-8 - Aluminum screw, M6 x 30 → Initial tightening: 4 Nm (3 ft. lb.) → Final tightening: +90°

1+2 - Loosen → Torque angle: -180°

1+2 - Aluminum screw, M6 x 30 → Initial tightening: 4 Nm (3 ft. lb.) → Final tightening: +90°

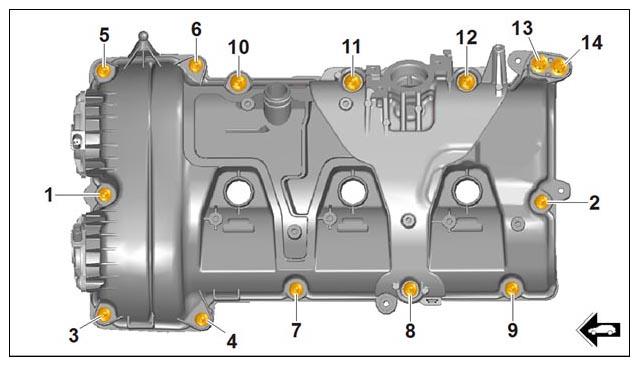

Fig 2: Valve Cover Tightening Sequence (Cylinders 4-6)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1-14 - Always observe the specified tightening sequence!

1+2 - Aluminum screw, M6 x 30 → Initial tightening: 4 Nm (3 ft. lb.)

13+14 - Screw, M8 x 44 → Tightening Torque: 23 Nm (17 ft. lb.)

10-12 - Aluminum screw, M8 x 35 → Initial tightening: 10 Nm (7.5 ft. lb.) → Final tightening: +90°

3-9 - Aluminum screw, M6 x 30 → Initial tightening: 4 Nm (3 ft. lb.) → Final tightening: +90°

1+2 - Loosen → Torque angle: -180°

1+2 - Aluminum screw, M6 x 30 → Initial tightening: 4 Nm (3 ft. lb.) → Final tightening: +90°
