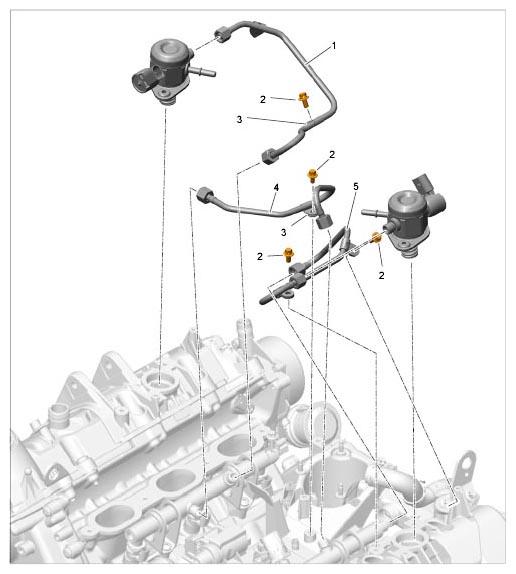

High-Pressure Pump With High-Pressure Lines
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Coat High-Pressure Line For Cylinders 1-3 Ball/Conical Joint With Microgleit 977S Grease
- Screw, M6 x 16 → Tightening Torque: 10 Nm (7.5 ft. lb.)
- Clamp
- Coat high-pressure connecting line Ball/Conical Joint With Microgleit 977S Grease
- Coat high-pressure line for cylinders 4-6 Ball/Conical Joint With Microgleit 977S Grease
Tightening Specifications For Fuel Lines To High-Pressure Pump And Fuel Gallery:
- Fit Union Nuts Hand-Tight.
- Screw In And Align Holder/Clamp.
- Tighten Union Nuts To → Initial Tightening: 20 Nm (15 ft. lb.)
- Tighten Holder/Clamp To → Tightening Torque: 10 Nm (7.5 ft. lb.)
- Tighten Union Nuts To → Final Tightening: +35 Nm (+26 ft. lb.) .
