Removing Cylinder Head Cover For Cylinders 4 - 6

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Replace sealing rings, seals and O-rings.

Information

For better access in the engine compartment, use Support 9866 .
Fit support -1- instead of torque support .
The engine can be moved by turning the hexagon (a/f 17) to the left or right -arrows- .

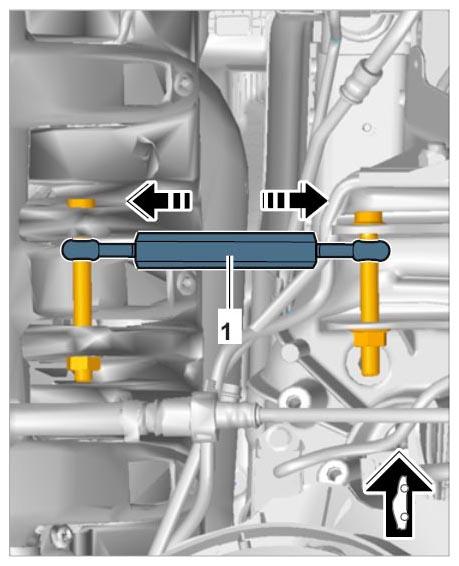

Fig 1: Moving Engine With Special Tool (9866)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening screws -1- and -2- .
Swivel wiring harness -3- aside.

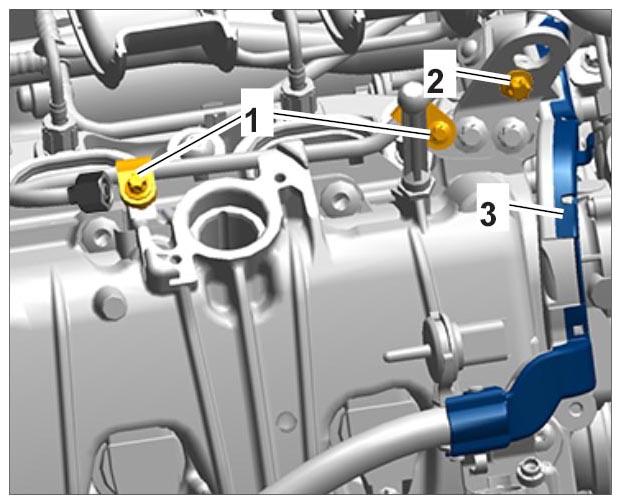

Fig 2: Identifying High-Pressure Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen union nut securing high-pressure line -5- to fuel collection pipe.
Information
- Fuel lines must not be bent .
- Bent fuel lines must be replaced .
Swivel high-pressure line -5- aside.

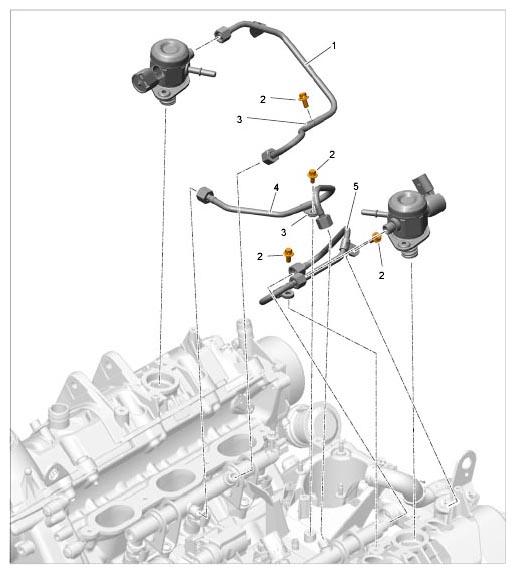

Fig 3: Identifying High-Pressure Pump And Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -1 to 14 - .
Replace Aluminum Screws .

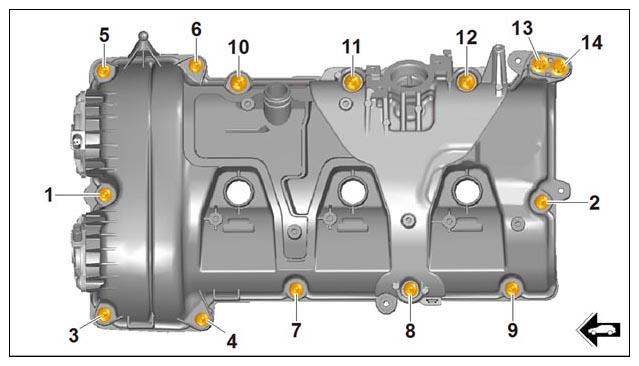

Fig 4: Valve Cover Screws Loosening Sequence (Cylinders 4-6)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cylinder head cover.
1. 6.1. Remove cam follower -6- from the cylinder head cover.

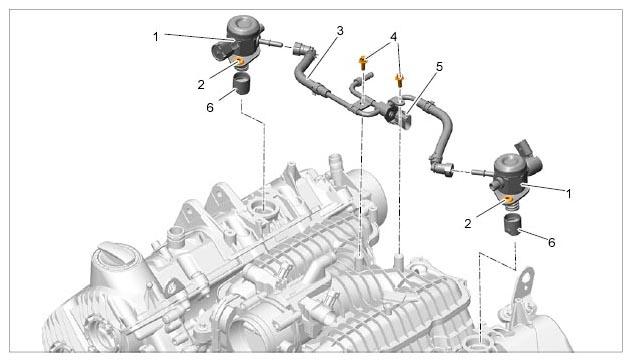

  Fig 5: Identifying Cam Follower For High-Pressure Pump
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
